NMA series｜Cable Harness Tester
Easy to use and rich in features with excellent performance.
It has shown excellent performance in resistance value testing that cannot be supported with an open/short circuit tester. This is a high-speed continuity resistance tester that covers the requirements for higher-level continuity testing.
| Test Points | 128/256/384 （variable per 128 points） |
|---|
JPY 280,000(128 points) – JPY 416,000(384points)
Shipping: 2-4weeks After Order ＊Not Including Transportation Cost and Fee
- Feature
- Specification
- Model
- Accessories
- Documents
- Options
- Customizing
Feature
Industry-standard for “Harness Tester” by high-speed testing
nacman NMA is Harness Tester can do 3 electric tests(Wiring,Conduction Resistance,Moment Disconnection) for Wire Harness with only it.
This series is widely used for not only testing Wire Harness but also connectors, FPC, Bare board, Touch Panel, and many items.
It takes over trust operability and maintainability of the previous model, and becomes industry standard for “Harness Tester”.
![[Video] how to operate Cable Harness Tester NMF,NMA and NMC+](https://www.naccorporation.com/en/wp-content/uploads/2020/12/Video-how-to-operate-Cable-Harness-Tester-NMA-NMF-NMC-.png)
How to Operate Cable Harness Testers in Stand-Alone
This video will show you how to operate the Cable Harness Testers in Stand-Alone.
You can check the preparation of test data by sampling, test the cables, and the settings.
This video can also be used for confirmation when considering the introduction of the Cable Harness Testers and for training the operators.
PC Software Operation for Cable Harness Testers
WireExpress is the free PC software to operate the Cable Harness Testers.
This video will show you how to operate the software.
It also allows for the manual editing of test data and the efficient management of the test report.
Good cost performance
We can provide this product customers with good price by our know-how and selected parts.
Easy to use,Introducing soon
The dial and simple menu are loved by users all over the world.
Test method in high speed and efficiency
Wiring test is completed in super short time.
The more test points are the better match is with our tester.
Worldwide Operation
It is compatible with AC90V~ 240V.
No problem to operate in an overseas factory.
You can choose language settings from English, Japanese and Chinese.
Better management by USB drive
USB support your inspections.Of course to control the testing data,you can record test results in it automatically.Updating firmware is enable by USB too.
High quality inspections by Printing
NMA has a printer port.Results can be output for evidences of testing.
Testing by PC communication
PC software WireExpress can be downloaded from our website.
It has a lot of functions for better inspection such as editing testing data, naming each terminal and setting the electric resistance value for each circuit.
Ultra long running by the high-speed analog switch
We adopted the high-speed analog switch .
It is better than usual relay and the contact life does not need to be considered.
Scanning time is very short.(on/off 14msec/9msec)
Useful functions in stand-alone
Setting resistance value for Wiring testing.
Measurement for resistance value of the test target.
In step inspection, you can do the test with more than two testing data successively.
This is best function for harnesses attached switch.
Search testing for loose wire.(sequential, random)
The search function is useful to check and create a jig for inspection.
When the inspection finishes, Sound and LED let you know the result.
You can check the NG wire by turning the dial.
Internal memory for 128 testing data(NMA128).
65536 data can be registered in the USB memory.
All test points are protected from the surge.
Free PC software can expand functions
Unlimited testing data storage.
Setting the test order as requested.
Naming each terminal as requested.
You can set the resistance value range for each terminal.
Saving test results and the detail as CSV automatically.
Login functions for help to separate administrators and workers.
Self-Diagnosis is useful to judge the tester normal or not.
Specification
- Wiring Testing
- 10Ω～200KΩ
- Conduction Resistance Testing
- 10Ω～200KΩ
- Dielectric Withstand Testing
- ---
- Insulation Resistance Testing
- ---
- Moment Disconnection Testing
- scanning
（Number of Test circuitsx2msec）
Detail
| Product Variant | 3 |
|---|---|
| Wiring Testing | ○ |
| Conduction Resistance Testing | ○ |
| Conduction Resistance Testing (4wire) | -- |
| Dielectric Withstand Testing（AC） | -- |
| Dielectric Withstand Testing（DC） | -- |
| Insulation Resistance Testing | -- |
| Moment Disconnection Testing | ○ |
| Search Testing | ○ |
| Search Scanning | ○ |
| Test Points | 128～384 |
| Test Circuits | 127〜383 (1:1 Test Circuits 64〜192) |
| Number of Memory | 453～162 |
| Number of Memory by USB | 65536 |
| Test Channels | -- |
| Number of Event | -- |
| Number of Event by USB | -- |
| Number of Event by PC | -- |
| Number of Output Event by COM port | -- |
| Number of Output Event For Printer | -- |
| Result Output | USB／Printer |
| Connectors | XG4A-6434 |
| Display Method | LCD |
| Operation Method | Dial／Switch |
| Language | English,Japanese,Chinese |
| External Printer | ○ |
| Connector for External Printer | DSUB-25S |
| Communication Port | ○ |
| Connector for Communication | DSUB-9P |
| Communication Method | RS232C |
| USB Flash Drive Communication | ○ |
| External Input | START |
| Output Terminal | OK/NG |
| Unit-to-unit Connector | -- |
| Data Retention Period | Over 50 years |
|---|---|
| Clock battery Life | Over 5 years |
| Power Supply | AC90V～AC240V |
| Size | W350mm×D240mm×H80mm |
| Weight | 3.2kg～3.6kg |
| Conditions for use | Temperature：5℃～40℃／Humidity：5%～70% |
| Software | WireExpress |
| Test Points Addition | ○ |
| Voltage for Wiring Testing | DC2.5V |
| Current for Wiring Testing | 0.025mA～25mA |
| Threshold for Wiring Testing | 10Ω～200KΩ |
| Test time for Wiring Testing | Less than 2sec |
| Voltage for Conduction Resistance Testing | DC2.5V |
| Current for Conduction Resistance Testing | 0.025mA～25mA |
| Threshold for Conduction Resistance Testing | 10Ω～200KΩ |
| Test time for Conduction Resistance Testing | Less than 2sec |
| Voltage for 4-wire low Conduction Resistance Testing | -- |
| Current for 4-wire low Conduction Resistance Testing | -- |
| Threshold for 4-wire low Conduction Resistance Testing | -- |
| Test time for 4-wire low Conduction Resistance Testing | -- |
| Voltage for Dielectric Withstand Testing（AC） | -- |
| Breaking Current for Dielectric Withstand Testing（AC） | -- |
| Test Time for Dielectric Withstand Testing（AC） | -- |
| Voltage Application for Dielectric Withstand Testing（AC） | -- |
| Voltage for Dielectric Withstand Testing（DC） | -- |
| Breaking Current for Dielectric Withstand Testing（DC） | -- |
| Test time for Dielectric Withstand Testing（DC） | -- |
| Voltage Application for Dielectric Withstand Testing（DC） | -- |
| Voltage for Insulation Resistance Testing | -- |
| Threshold for Insulation Resistance Testing | -- |
| Test Time for Insulation Resistance Testing | -- |
| Voltage Application for Insulation Resistance Testing | -- |
| Voltage for Moment Disconnection Testing | DC2.5V |
| Current for Moment Disconnection Testing | 0.025mA～25mA |
| Threshold for Moment Disconnection Testing | 10Ω～200KΩ |
| Detection Time for Moment Disconnection Testing | 64～192msec |
| Test Time for Moment Disconnection Testing | 2～999sec（Or Stop by Button） |
| Moment Disconnection Testing Method | Scanning |
Model
| Product | Test Points | Size | Price | Delivery date |
|---|---|---|---|---|

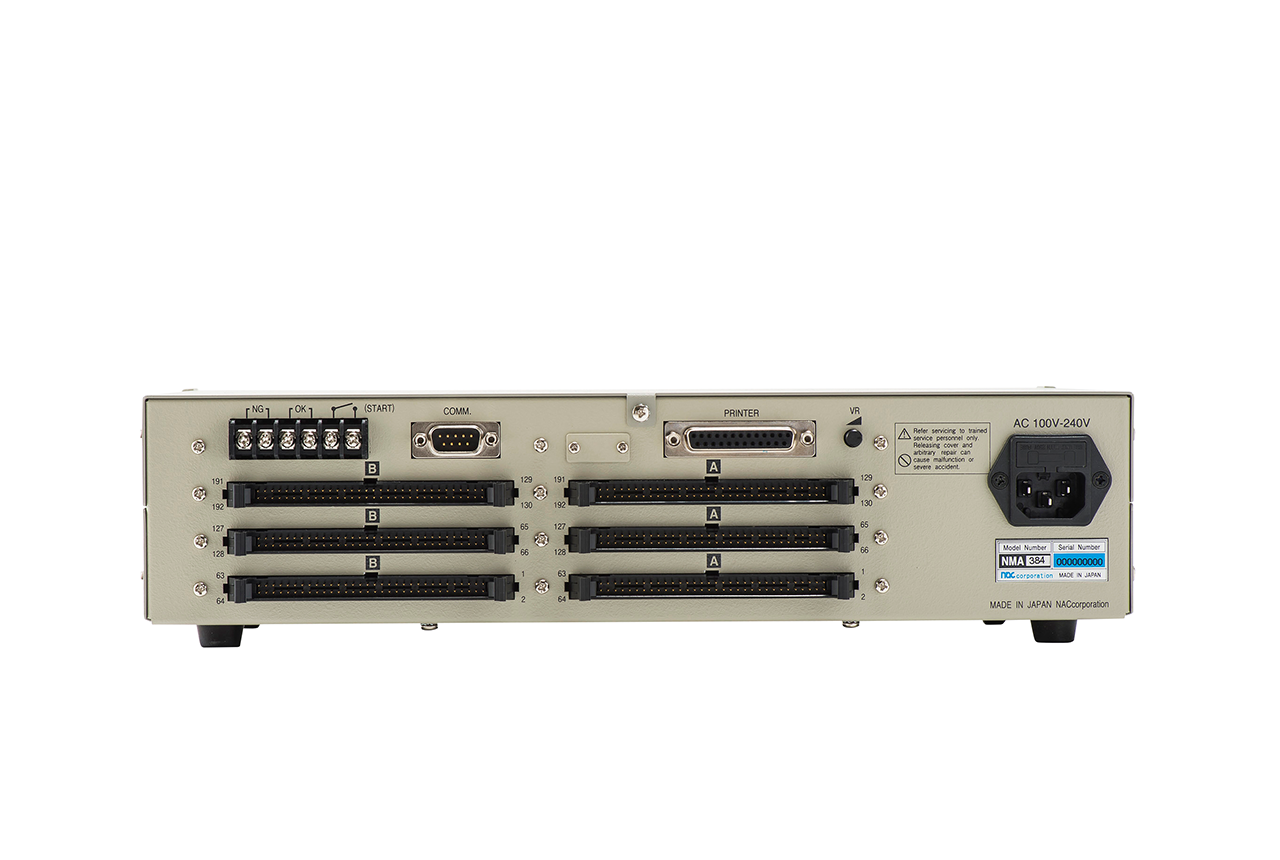

| NMA128 | 128 | W350mm×D240mm×H80mm | ¥280,000 | About 2 weeks |
| NMA256 | 256 | W350mm×D240mm×H80mm | ¥348,000 | About 2 weeks |
| NMA384 | 384 | W350mm×D240mm×H80mm | ¥416,000 | About 2 weeks |
Accessories
| Testing Cable | NMCBL-64-0.8C(2sets) |
|---|---|
| Power Cable | NMCBL-PWR 1set |
| Search Probe | NM-SRH-PEN(1set) |
| Warranty | 1copy |
Documents
| Specification Sheet EN | NMA_spec_en_V1R1 |
|---|---|
| Operation Manual EN | NMA_OP_en_V1R1 |
| USB Manual EN | NMA_USB_en_V1R1 |
| Company Brochure | Company Brochure in Japanese |
| Company Brochure | Company Brochure in English |
