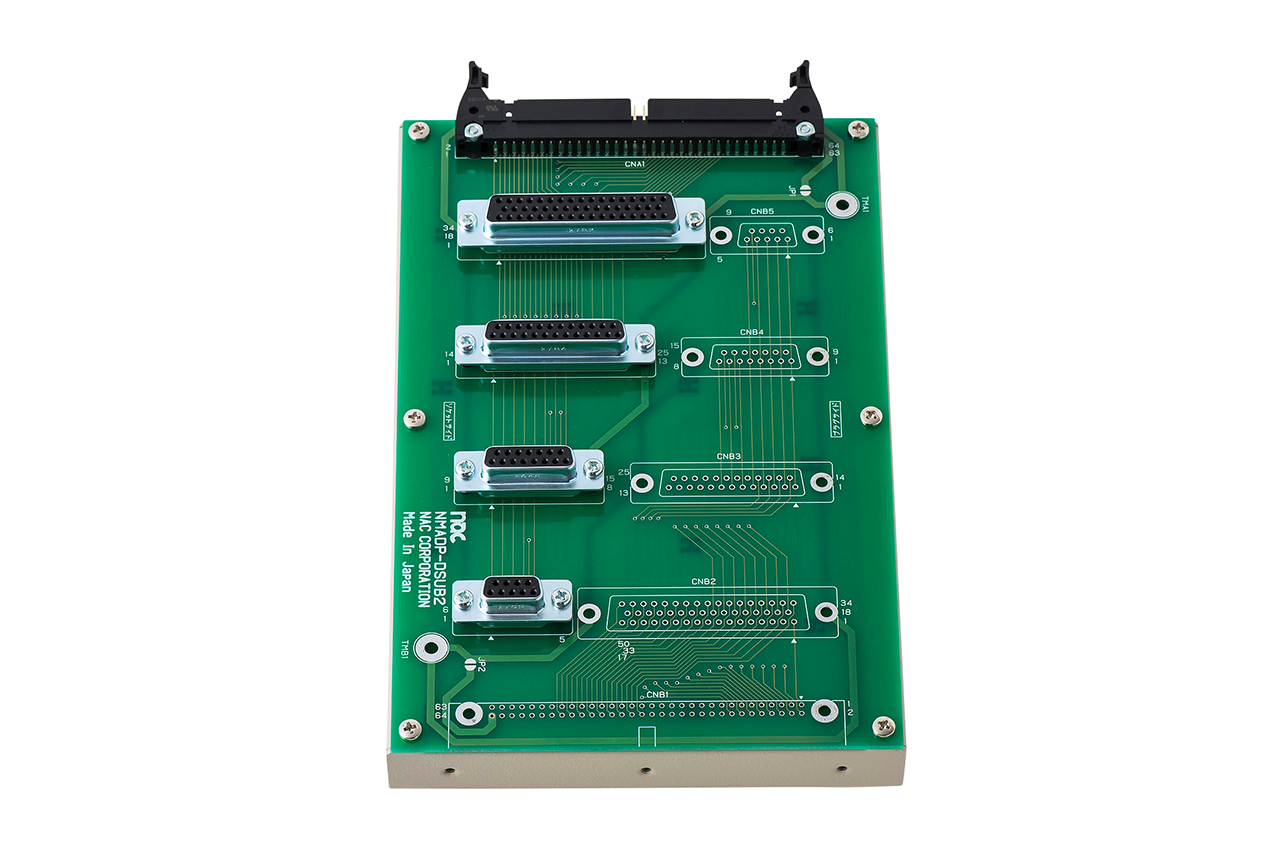

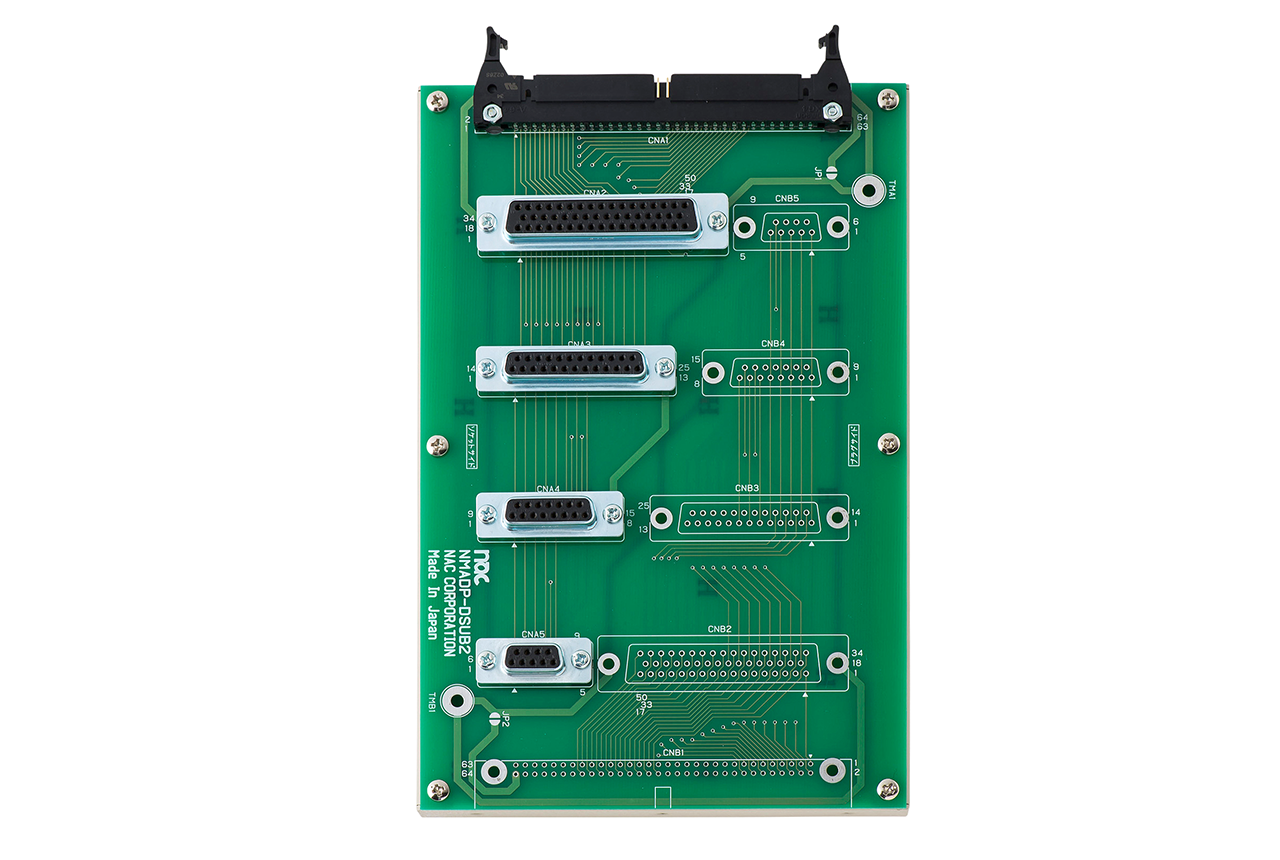

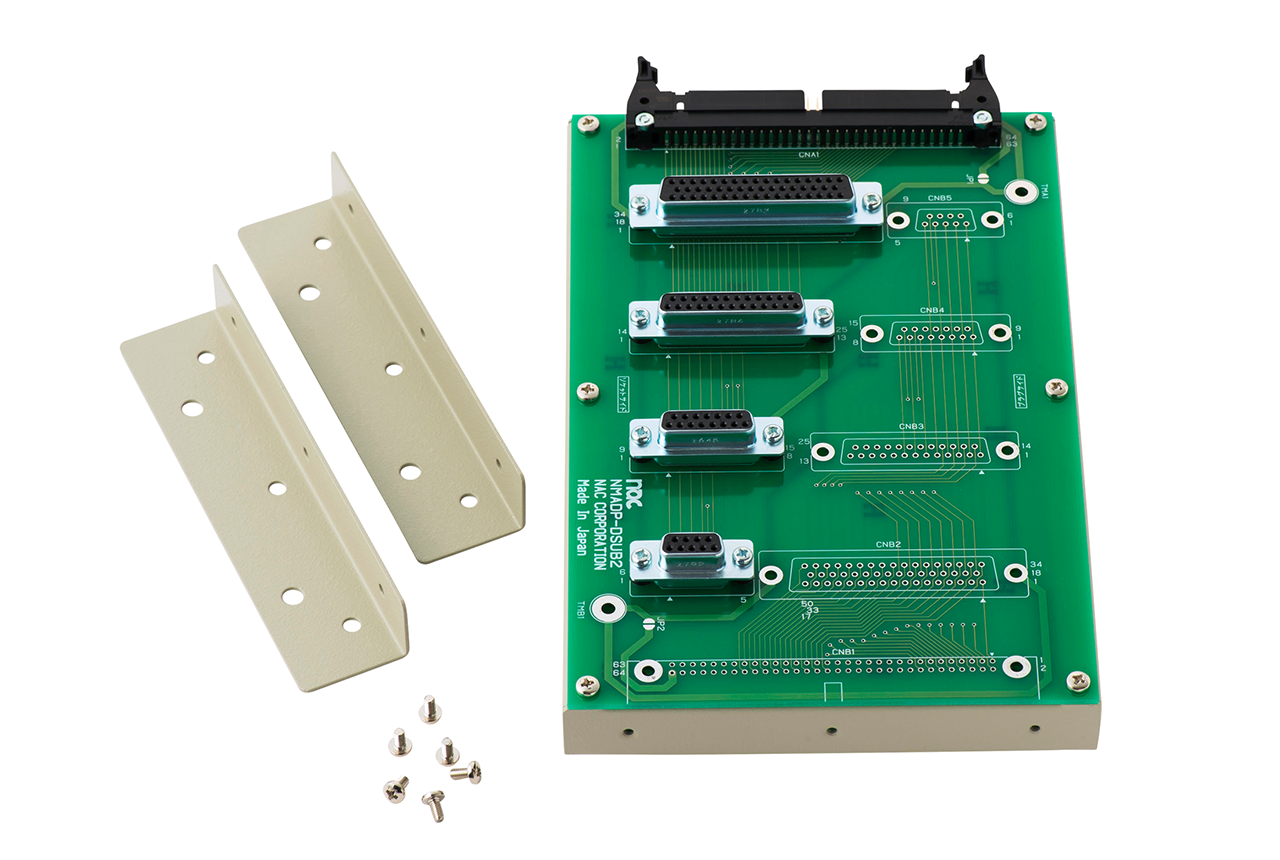

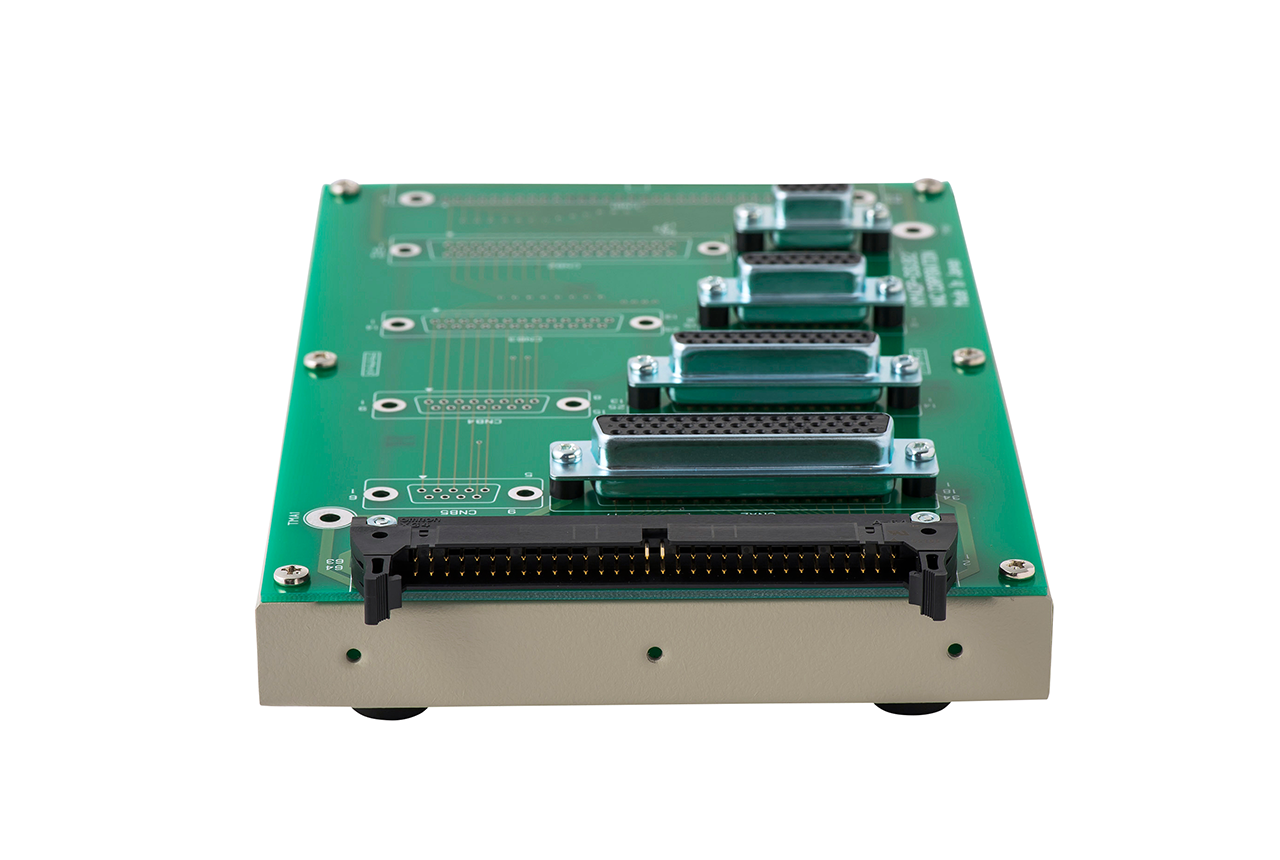

NM-ADP-05L
Conversion socket adapter for harness inspection（DSUB connectors/9/15/25/50pin)
A jig adapter ideal for harness testing without high voltage testing.
JPY 31,800
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
Specifications
| Connectors for the test target | DSUB 9-pin socket connector DSUB 15-pin socket connector DSUB 25-pin socket connector DSUB 50-pin socket connector |
|---|---|
| Connectors for the tester | MIL-C-83503 64-pin socket connector（1nose） |
| Size | W:130mm L:200mm H:21.6mm（Not including rubber feet / projections） |
