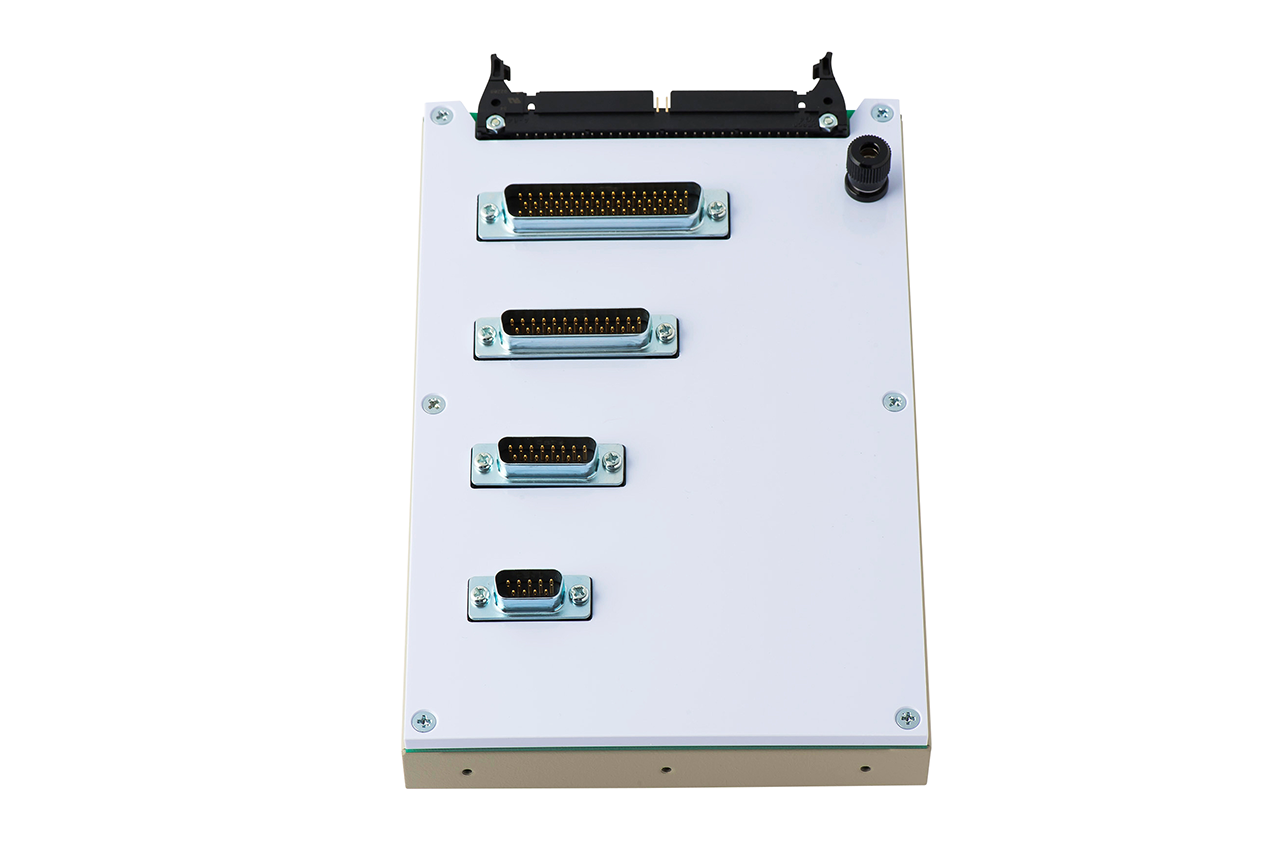

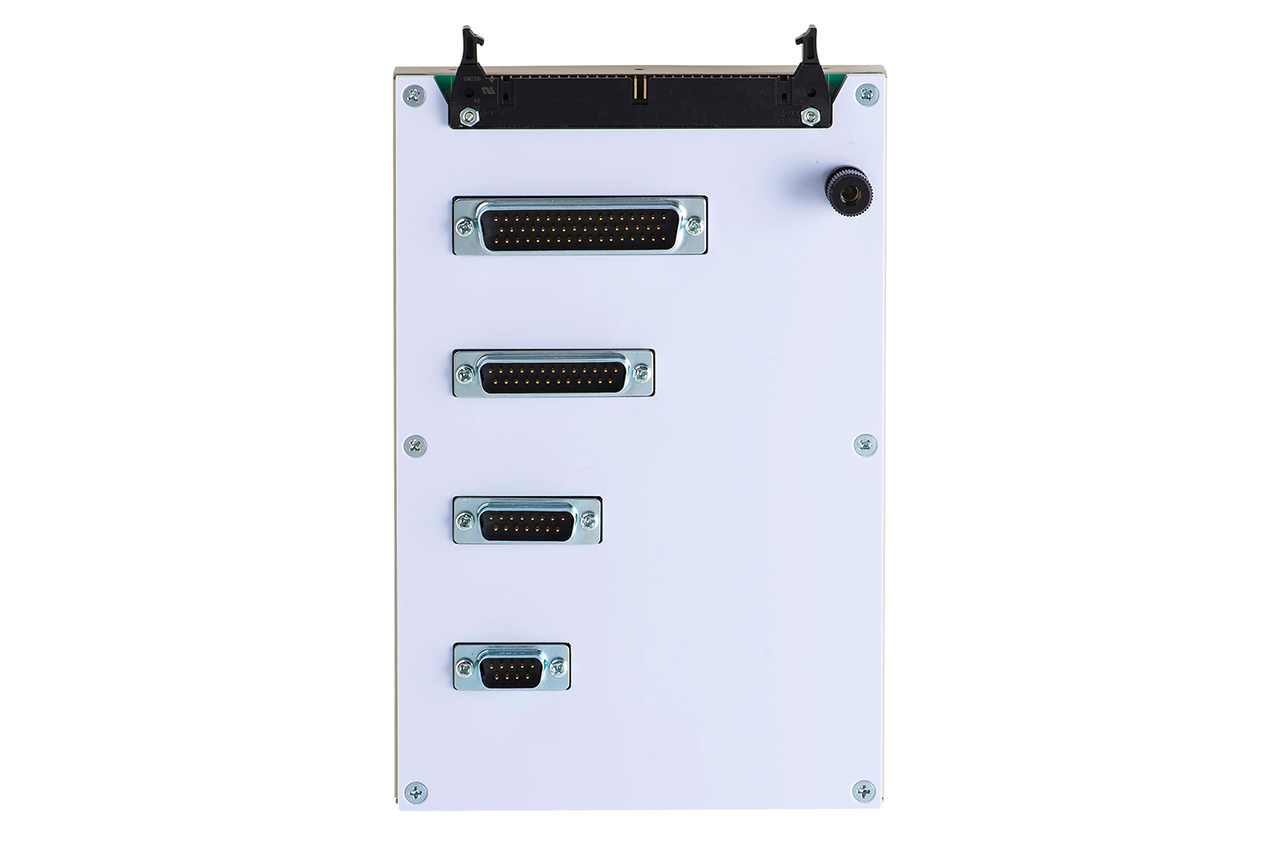

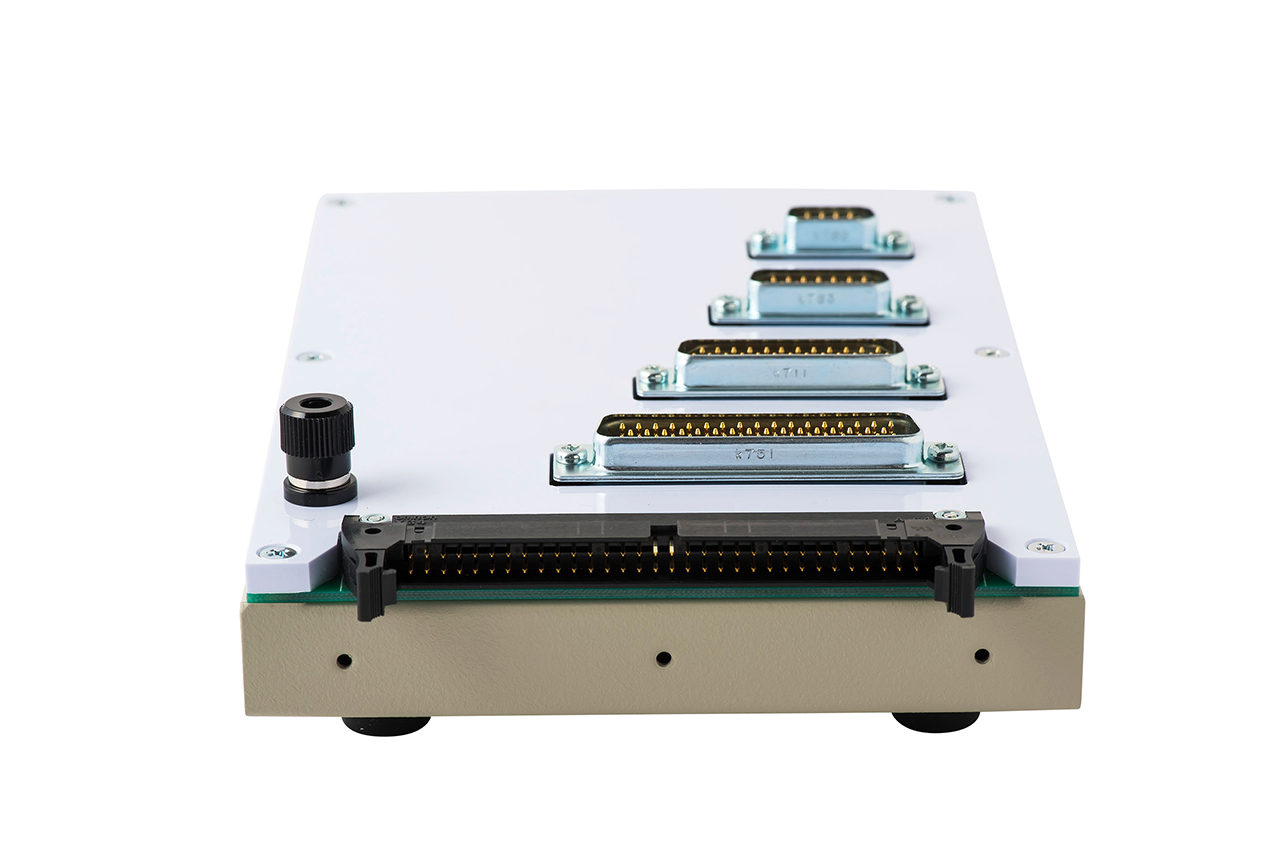

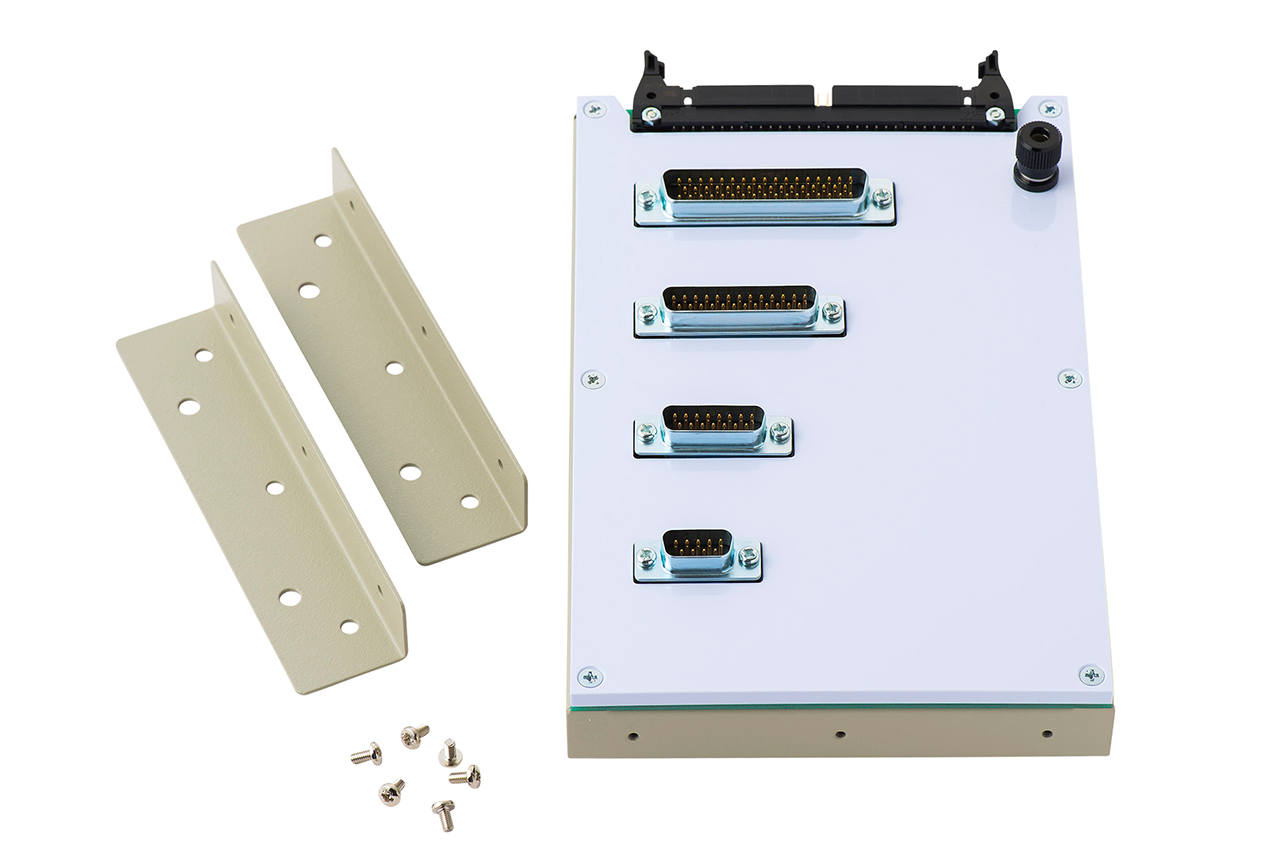

NM-ADP-06H

Conversion plug adapter for high voltage cable harness testing(DSUB connectors/9/15/25/50pins)

A jig adapter ideal for harness testing with high-voltage.
The board is covered for safety.

JPY 40,000
Shipping: 2weeks After Order
*Not Including Transportation Cost and Fee

Quotation

Specifications

Connectors for the test target DSUB 9-pin plug connector
DSUB 15-pin plug connector
DSUB 25-pin plug connector
DSUB 50-pin plug connector
Connectors for the tester MIL-C-83503 64-pin header connector (1 nose)
Size W:130mm L:200mm H:26.6mm(Not including rubber feet / projections)
