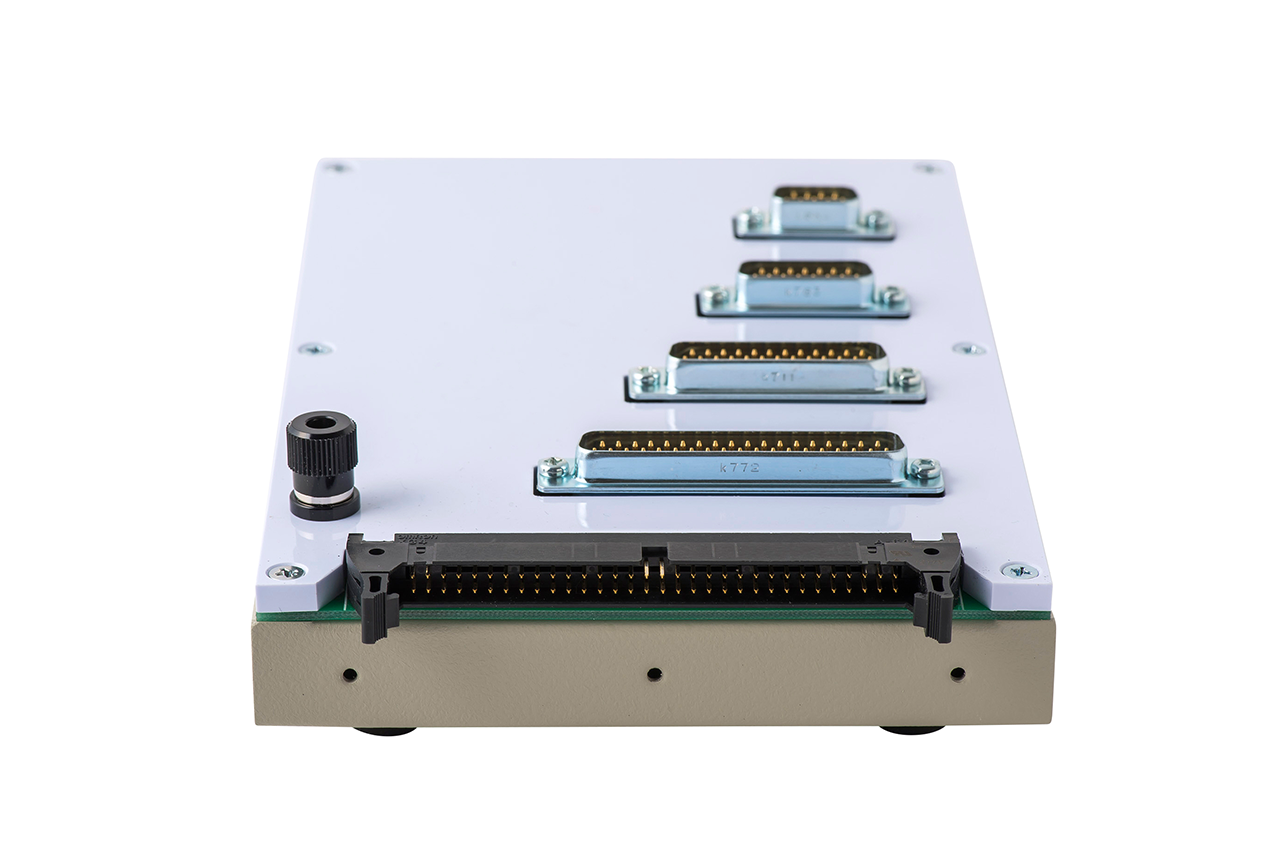

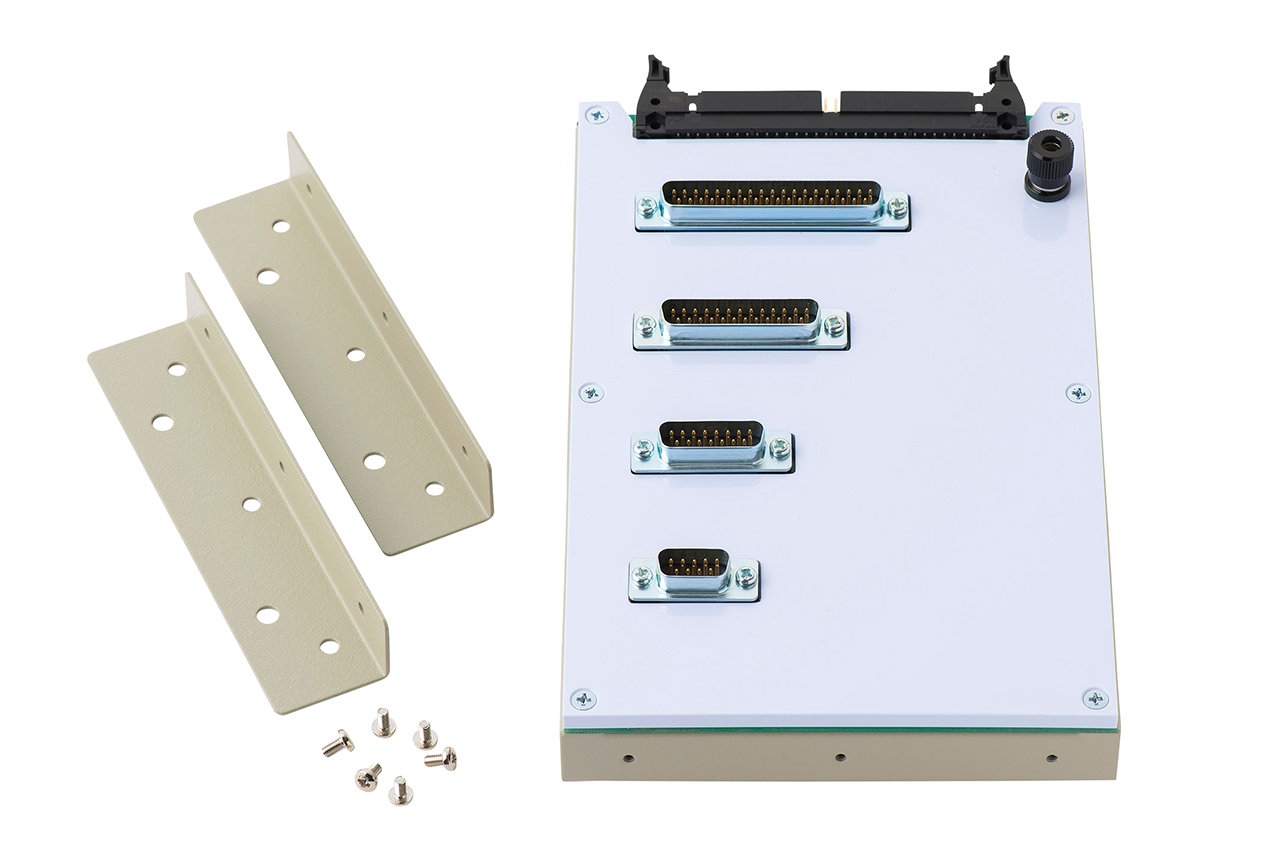

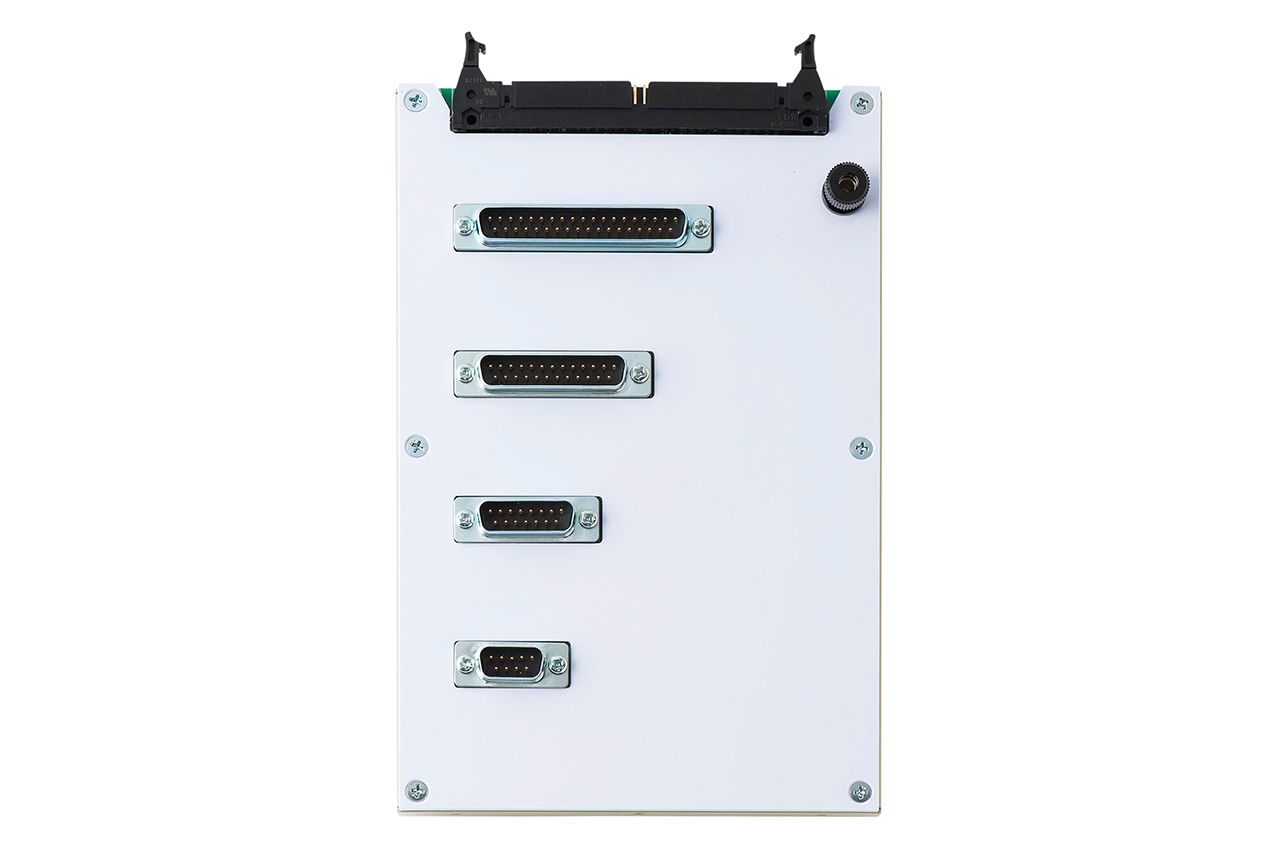

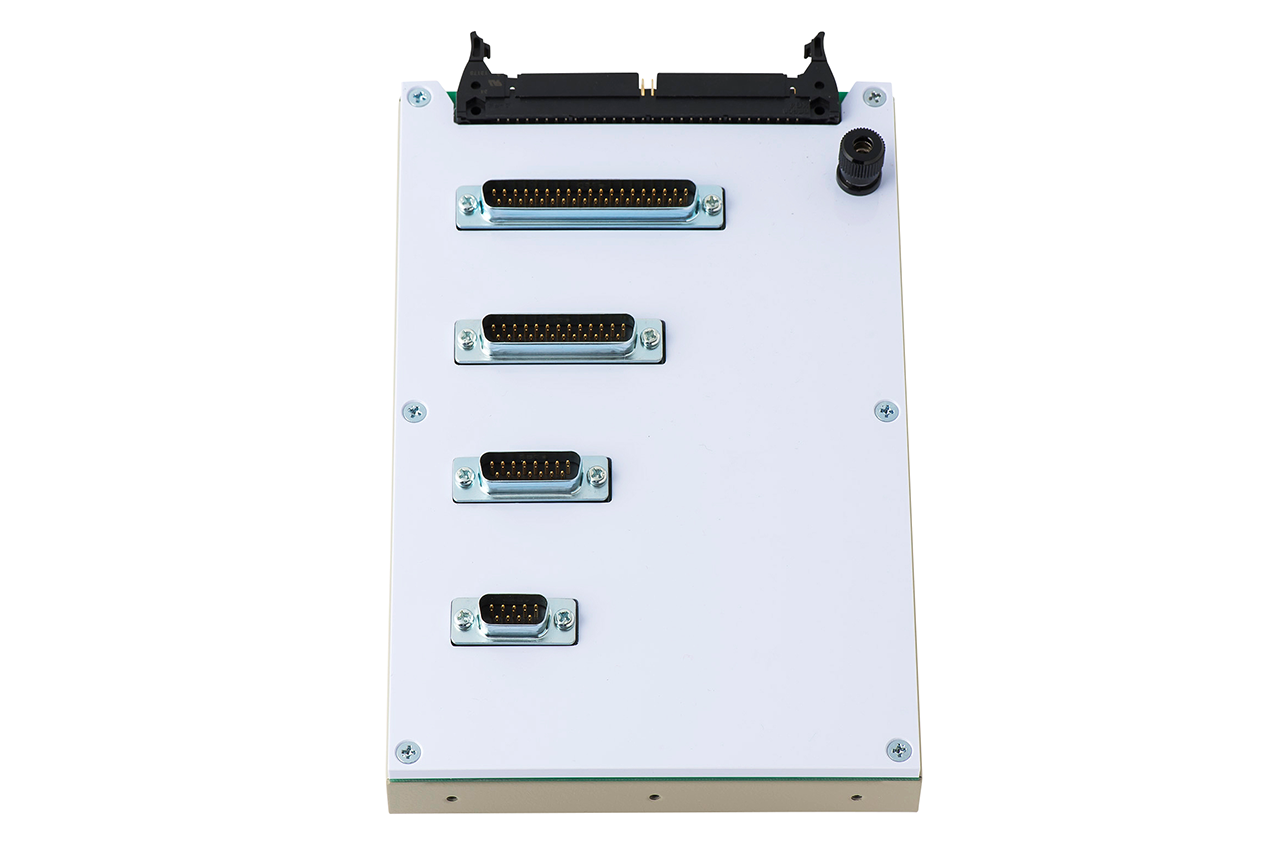

NM-ADP-04H
Conversion plug adapter for high voltage cable harness testing（DSUB connectors/9/15/25/37pins）
A jig adapter ideal for harness testing with high-voltage.
The board is covered for safety.
JPY 41,800
Shipping: 2weeks After Order ＊Not Including Transportation Cost and Fee
Specifications
| Connectors for the test target | DSUB 9-pin plug connector DSUB 15-pin plug connector DSUB 25-pin plug connector DSUB 37-pin plug connector |
|---|---|
| Connectors for the tester | MIL-C-83503 64-pin header connector （1 nose） |
| Size | W:130mm L:200mm H:26.6mm （Not including rubber feet / projections） |
