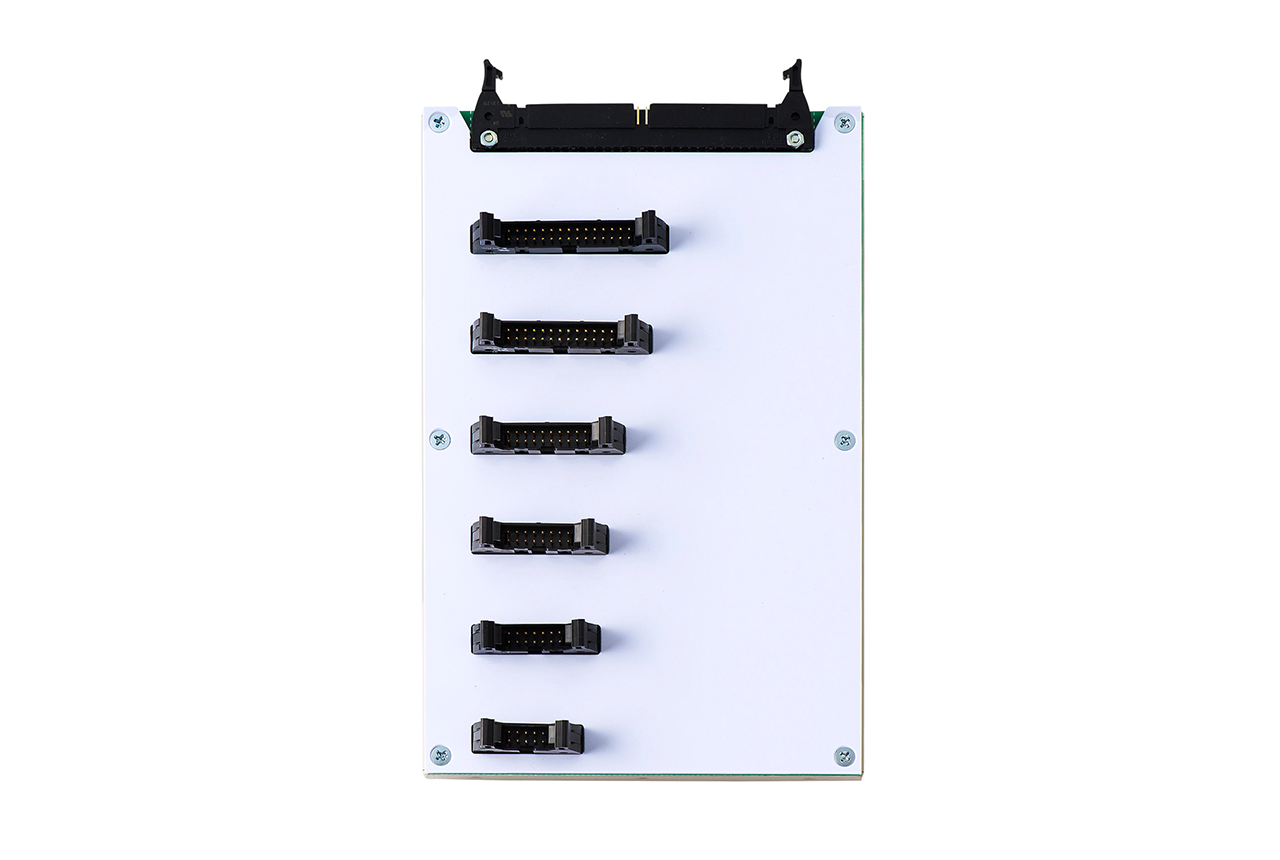

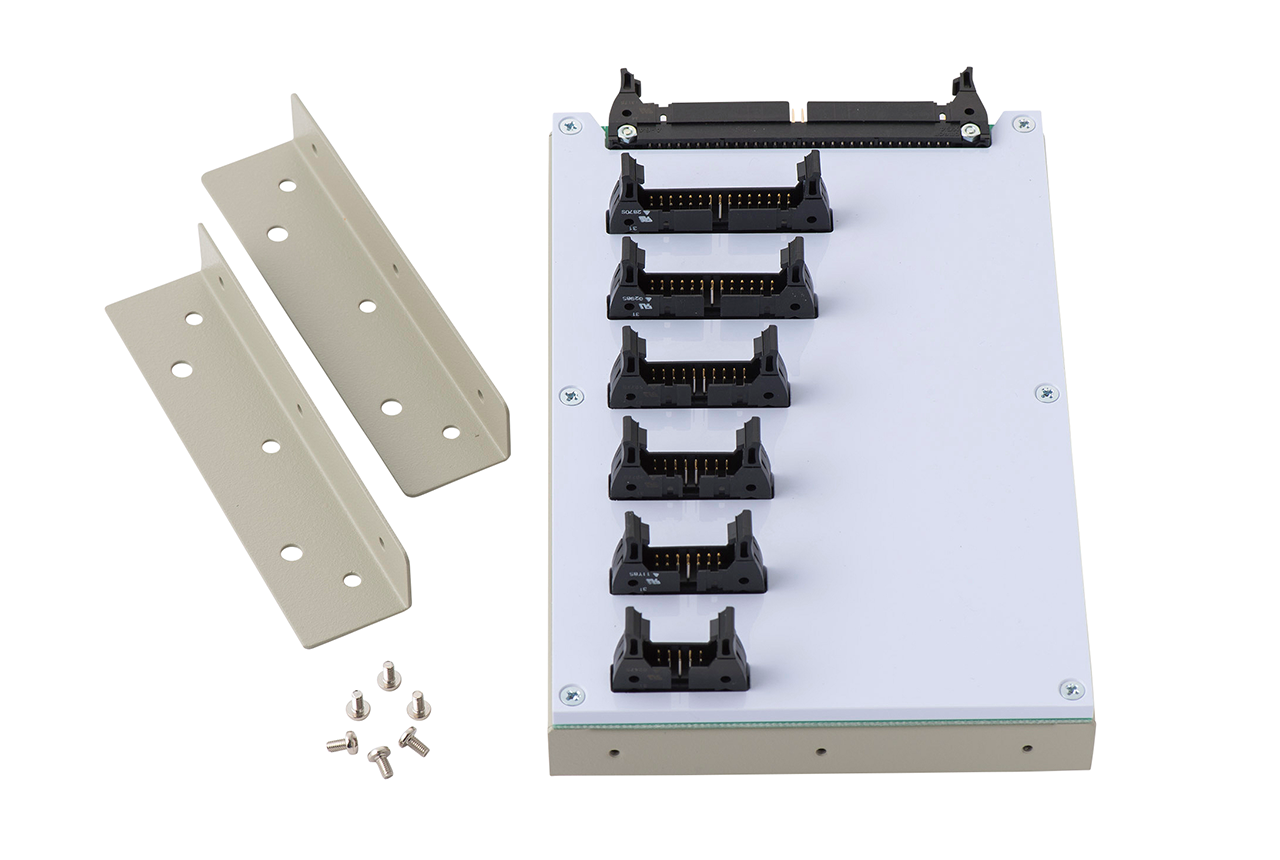

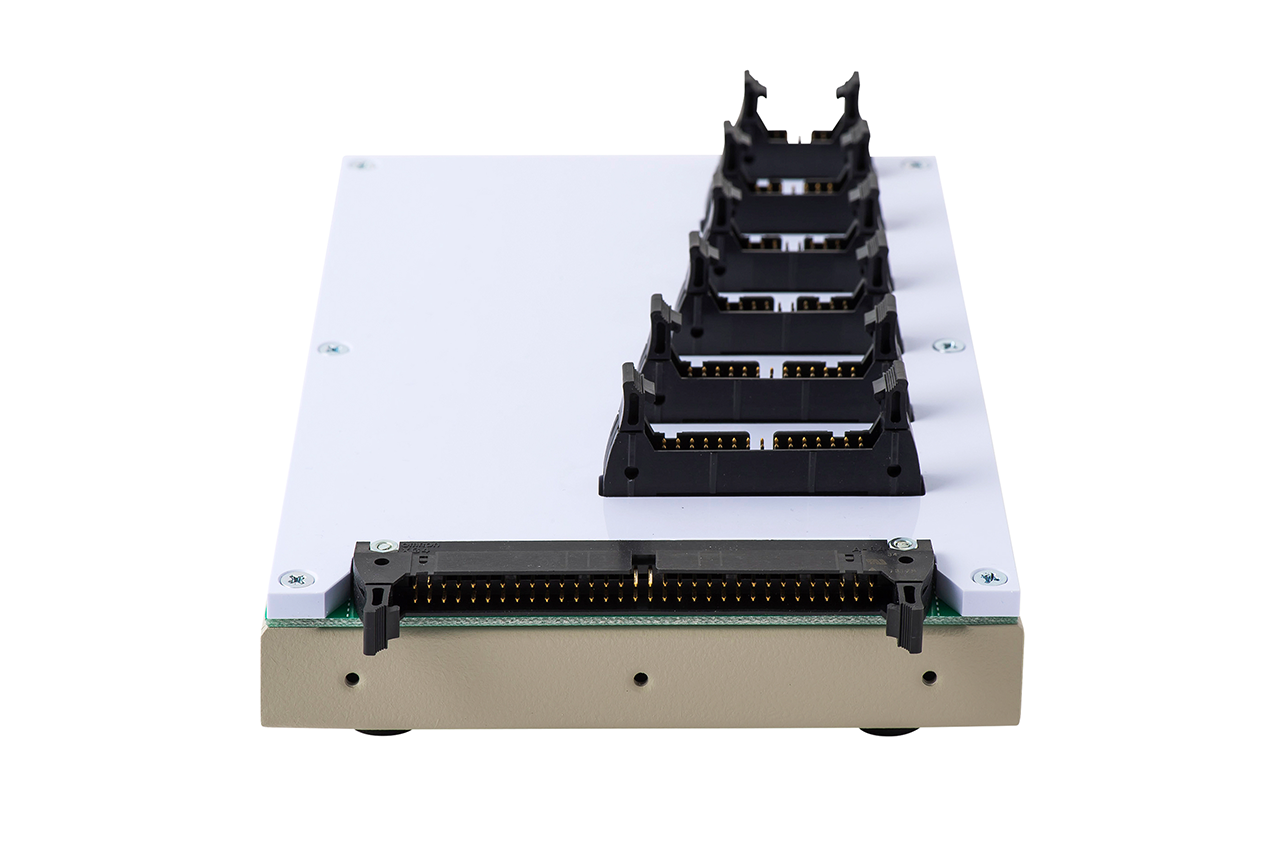

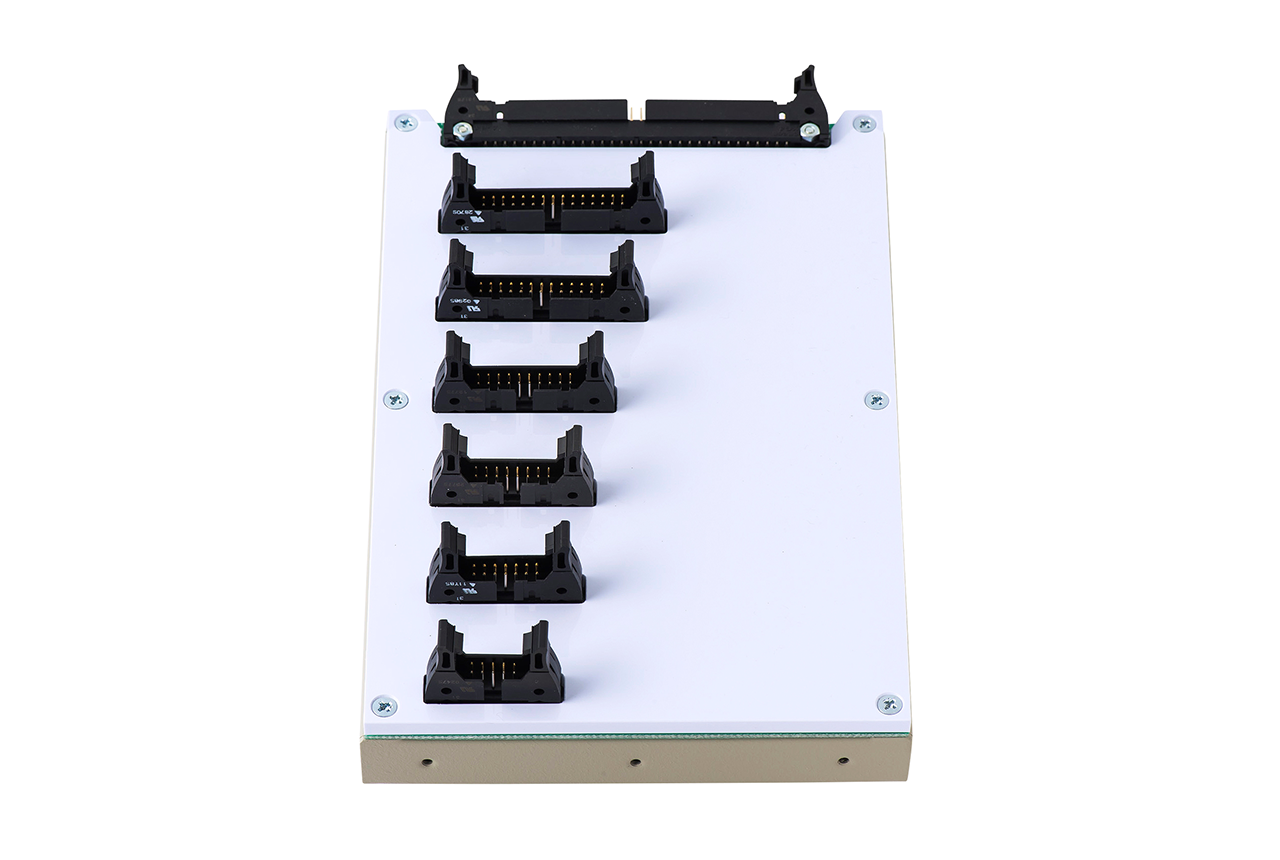

NM-ADP-01H

Conversion header adapter for high voltage cable harness testing(MIL connectors 10/14/16/20/26/30pin)

A jig adapter ideal for harness testing with high-voltage.
The board is covered for safety.

JPY 35,000
Shipping: 2weeks After Order
*Not Including Transportation Cost and Fee

Quotation

Specifications

Connectors for the test target MILーC-83503 10-pin header connector (1 nose)
MILーC-83503 14-pin header connector(1 nose)
MILーC-83503 16-pin header connector (1 nose)
MILーC-83503 20-pin header connector (1 nose)
MILーC-83503 26-pin header connector (1 nose)
MILーC-83503 30-pin header connector (1 nose)
Connectors for the tester MILーC-83503 64-pin header connector (1 nose)
Size W:130mm L:200mm H:26.6mm (Not including rubber feet / projections)
