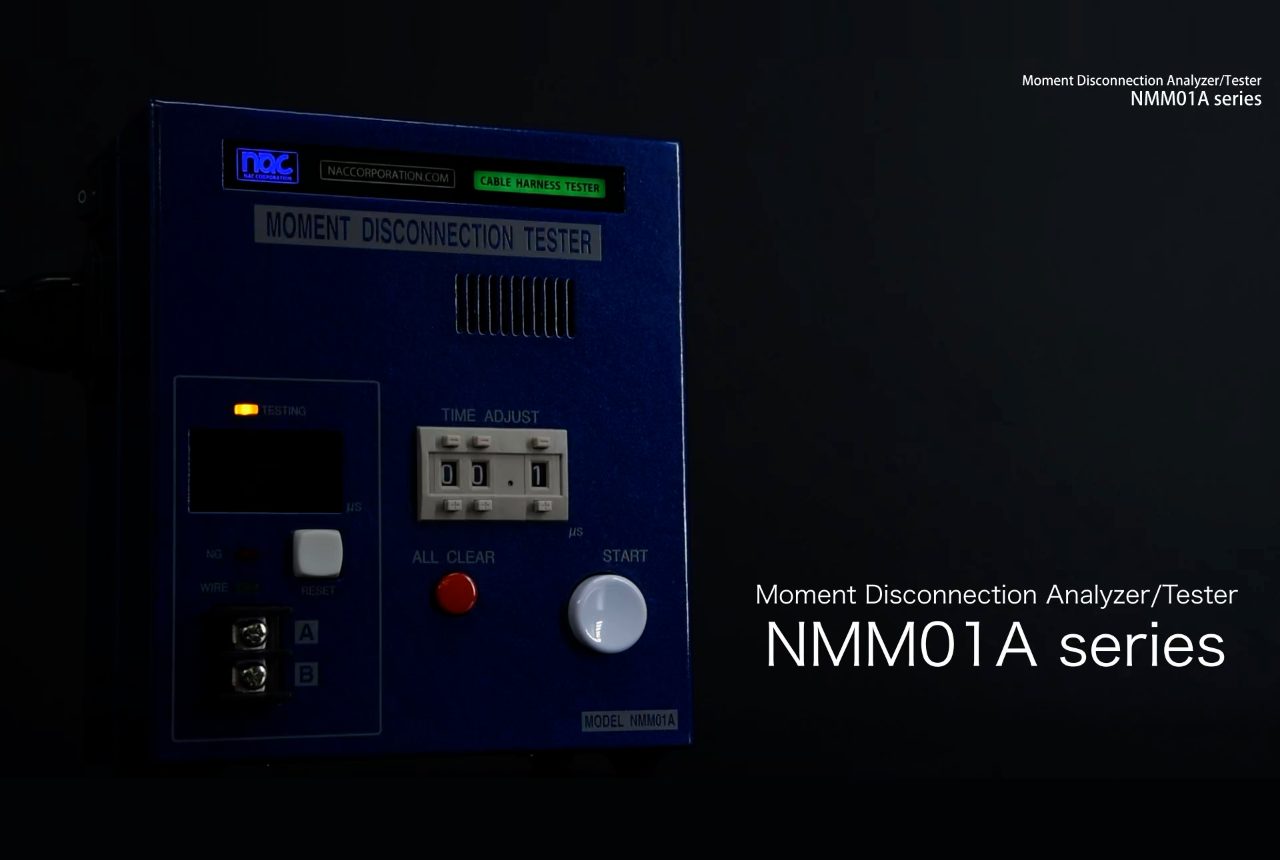

Compact and Easy.Useful not only in a worksite but also in a lab and office!!

A reliable machine for moment disconnection testing!!High-level inspection with you!!

Test Channels

1 Channel

JPY 138,000

Shipping: 2-4weeks After Order  *Not Including Transportation Cost and Fee

Catalog Customizing

Quotation

  • Feature
  • Specification
  • Model
  • Accessories
  • Documents

Feature

Unpredictable defective product can be by Moment disconnection??
Making high-quality your products by NMM01A

Some customers inquiry us NG occurrence in the assembly in spite of electrical testing passes.
It is a bothering problem for inspectors, connector manufacturers and manufacturer of assembled products。
In this case, there is a possibility to occur moment disconnection in the product.
Actually moment disconnection tester helps customers find trouble in the environment exposed to vibration.
With this tester, you can test the intersection of connectors.
Better quality and support 0 defective product in the field.

Compact and Space saving,Testing moment disconnection anywhere

There is great demand to inspect it in the environmental exposed to vibration such as Automobile,Construction machinery,Train and Ship.
Because the electrical devices are complicated day by day.
the moment disconnection can cause fatal trouble to devices operating.

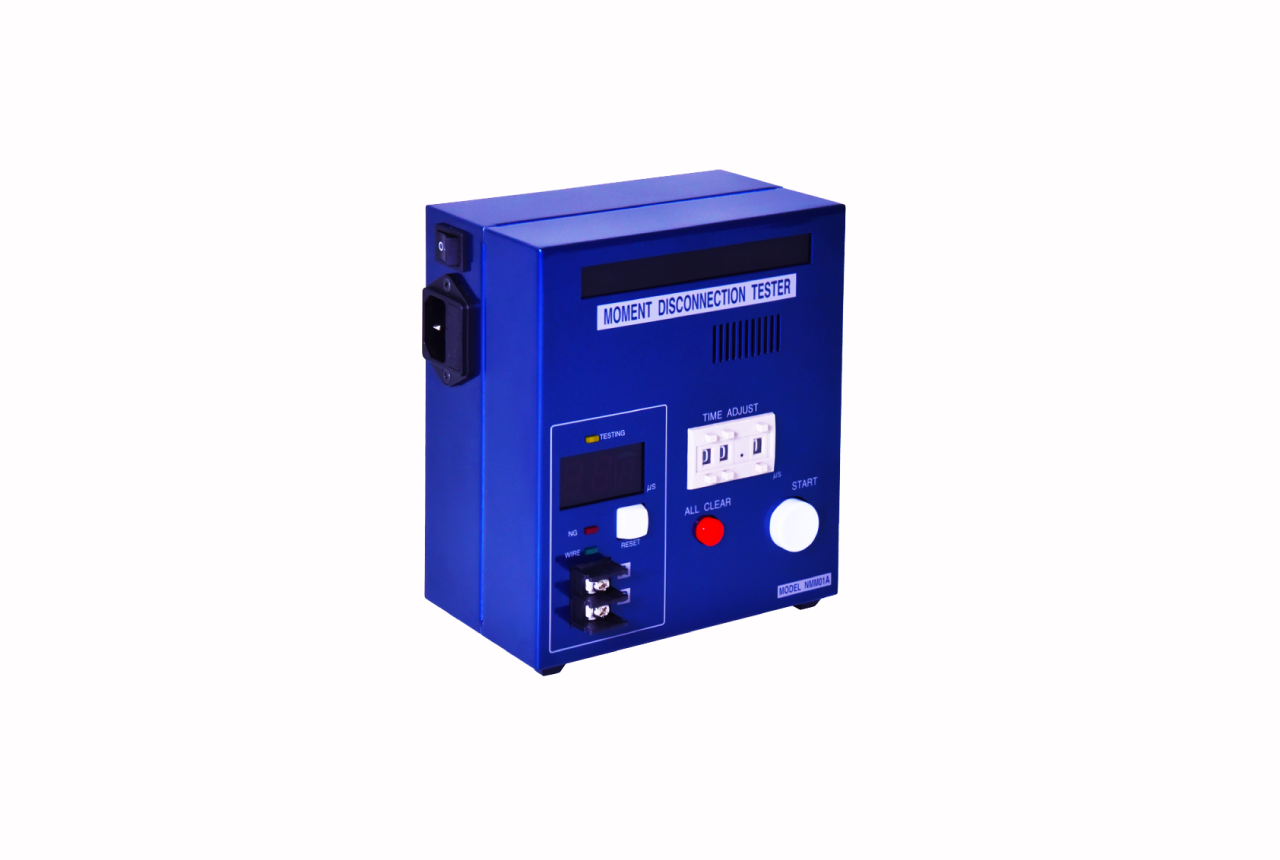

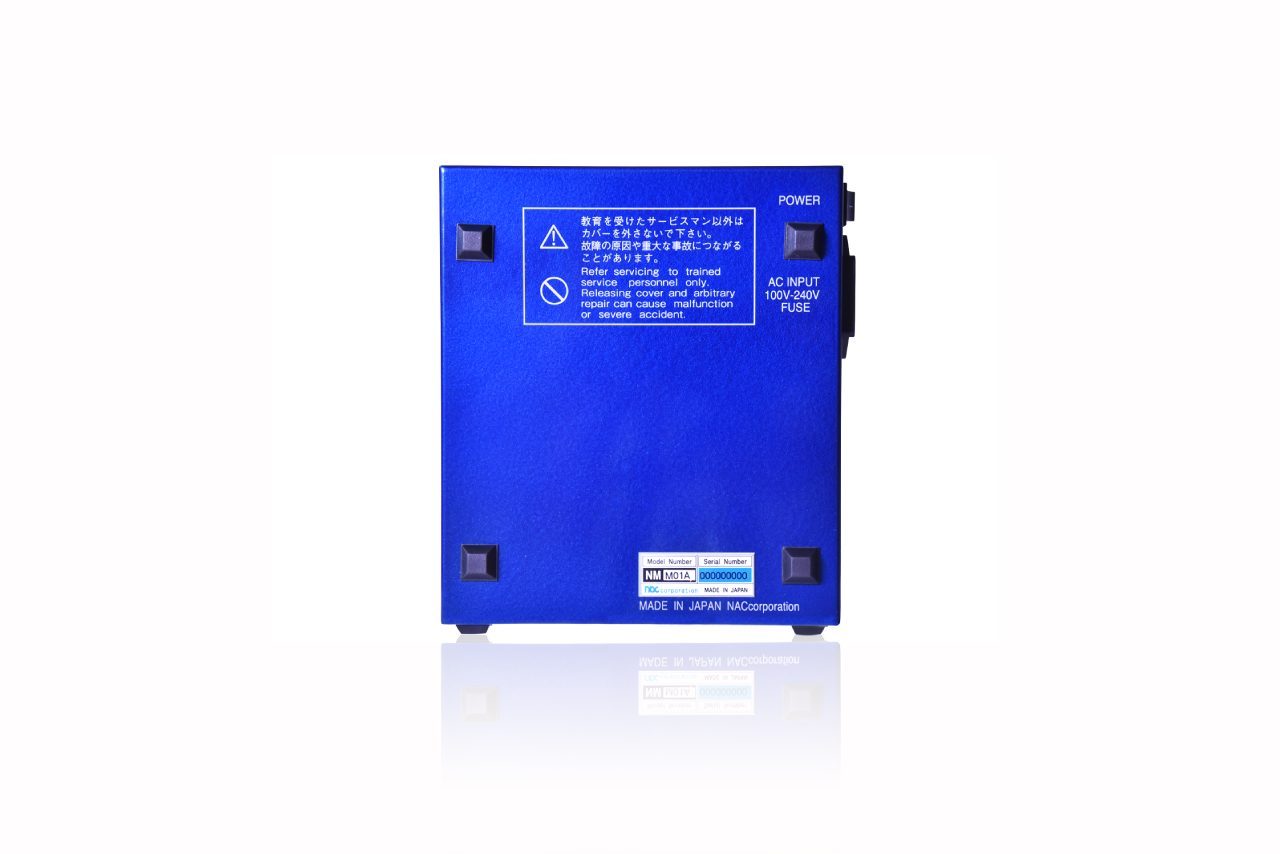

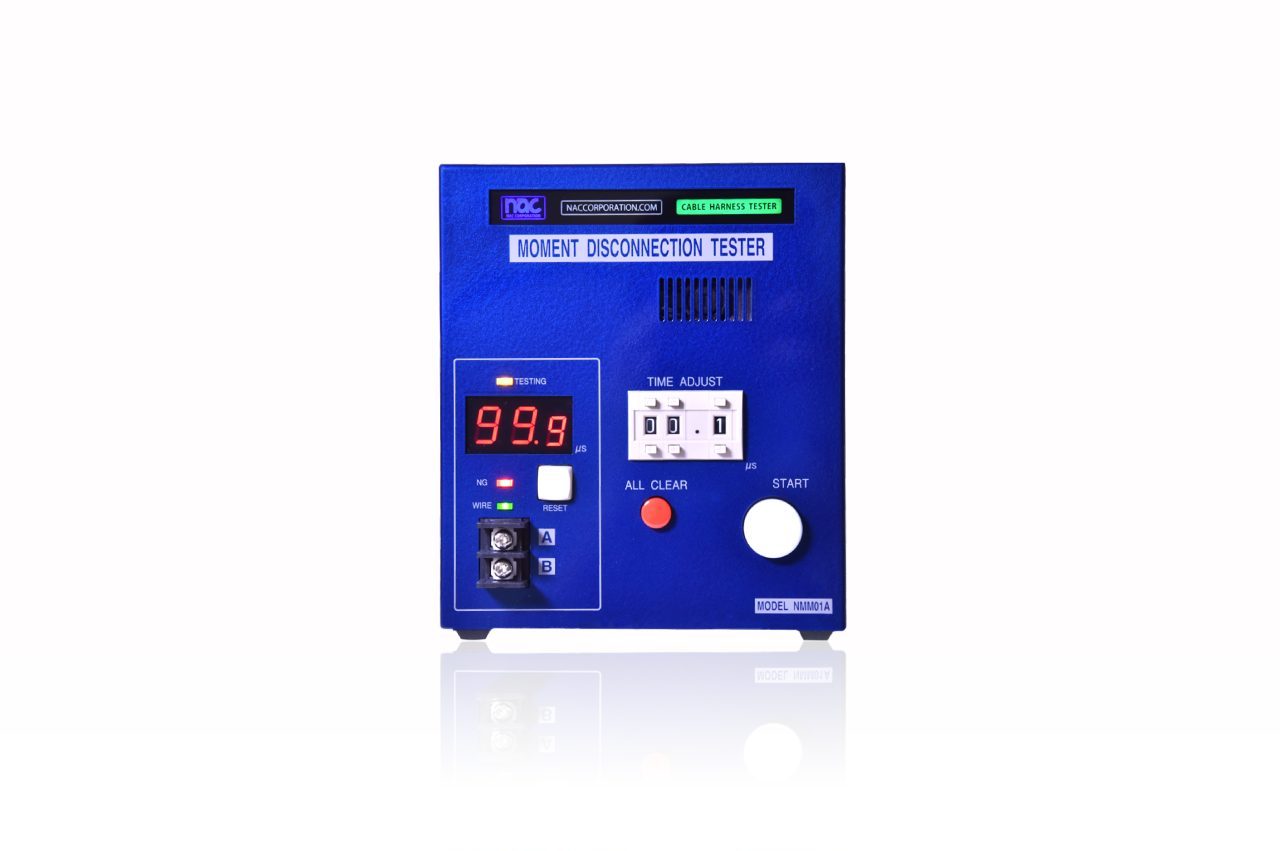

NMM01A is the most compact tester for moment disconnection.
You can test moment disconnection anywhere with it.

Simple opereation and easy installation

As nacman testers,NMM01A is simple and beautiful design for easy use.
When the NG is detected, You can know it by NG sound.

Specification

Wiring Testing
---
Conduction Resistance Testing
---
Dielectric Withstand Testing
---
Insulation Resistance Testing
---
Moment Disconnection Testing
0.1μs.~99.9μs.

Detail

Product Variant --
Wiring Testing --
Conduction Resistance Testing --
Conduction Resistance Testing (4wire) --
Dielectric Withstand Testing(AC) --
Dielectric Withstand Testing(DC) --
Insulation Resistance Testing --
Moment Disconnection Testing --
Search Testing --
Search Scanning --
Test Points 1
Test Circuits 1
Number of Memory --
Number of Memory by USB --
Test Channels 1
Number of Event --
Number of Event by USB --
Number of Event by PC --
Number of Output Event by COM port --
Number of Output Event For Printer --
Result Output --
Connectors ML-270-S1B3YF
Display Method LED7 segments
Operation Method Switch
Language Number
External Printer --
Connector for External Printer --
Communication Port --
Connector for Communication --
Communication Method --
USB Flash Drive Communication --
External Input --
Output Terminal --
Unit-to-unit Connector --
Data Retention Period --
Clock battery Life --
Power Supply AC90V~AC240V
Size W140mm×D85mm×H160mm
Weight About 1.2kg
Conditions for Use Temperature:10℃~40℃/Humidity:5%~70%
Software --
Test Points Addition --
Voltage for Wiring Testing --
Current for Wiring Testing --
Threshold for Wiring Testing --
Test time for Wiring Testing --
Voltage for Conduction Resistance Testing --
Current for Conduction Resistance Testing --
Threshold for Conduction Resistance Testing --
Test time for Conduction Resistance Testing --
Voltage for 4-wire low Conduction Resistance Testing --
Current for 4-wire low Conduction Resistance Testing --
Threshold for 4-wire low Conduction Resistance Testing --
Test time for 4-wire low Conduction Resistance Testing --
Voltage for Dielectric Withstand Testing(AC) --
Breaking Current for Dielectric Withstand Testing(AC) --
Test Time for Dielectric Withstand Testing(AC) --
Voltage Application for Dielectric Withstand Testing(AC) --
Voltage for Dielectric Withstand Testing(DC) --
Breaking Current for Dielectric Withstand Testing(DC) --
Test time for Dielectric Withstand Testing(DC) --
Voltage Application for Dielectric Withstand Testing(DC) --
Voltage for Insulation Resistance Testing --
Threshold for Insulation Resistance Testing --
Test Time for Insulation Resistance Testing --
Voltage Application for Insulation Resistance Testing --
Voltage for Moment Disconnection Testing DC3.3V
Current for Moment Disconnection Testing 100mAmax
Threshold for Moment Disconnection Testing About33Ω
Detection Time for Moment Disconnection Testing 0.1~99.9μsec.
Test Time for Moment Disconnection Testing NG or Stop by Button
Moment Disconnection Testing --

Model

Product Test Points Size Price Delivery date
NMM01A 1 W140mm×D85mm×H160mm 138000 About 2 weeks

Accessories

Testing Cable --
Power Cable NMCBL-PWR (2P/3P Plug Attached)
Screwdriver for volume NMF-SD(1set)
Calibration Certificate Calibration Certificate/Traceability System Diagram/Inspection Result Sheet
Warranty 1 Copy

Documents

Specification Sheet EN NMM01A_spec_en_V1R1
Operation Manual EN NMM01A_OP_en_V1R1
Company Brochure Company Brochure in Japanese
Company Brochure Company Brochure in English
