NMS10｜Moment disconnection Analyzer/Tester
Captures momentary disconnection in real-time and never misses one.
Performs real-time and long-time monitoring on momentary disconnection, and logs the event. It also supports mass production lines for Pass/Fail evaluation purposes.
| Test Channels | 10 Channels |
|---|
JPY 918,000
Shipping: 3-5weeks After Order ＊Not Including Transportation Cost and Fee
- Feature
- Specification
- Model
- Accessories
- Documents
- Options
Feature
Moment Disconnection Analyzer in production line and Product evaluation

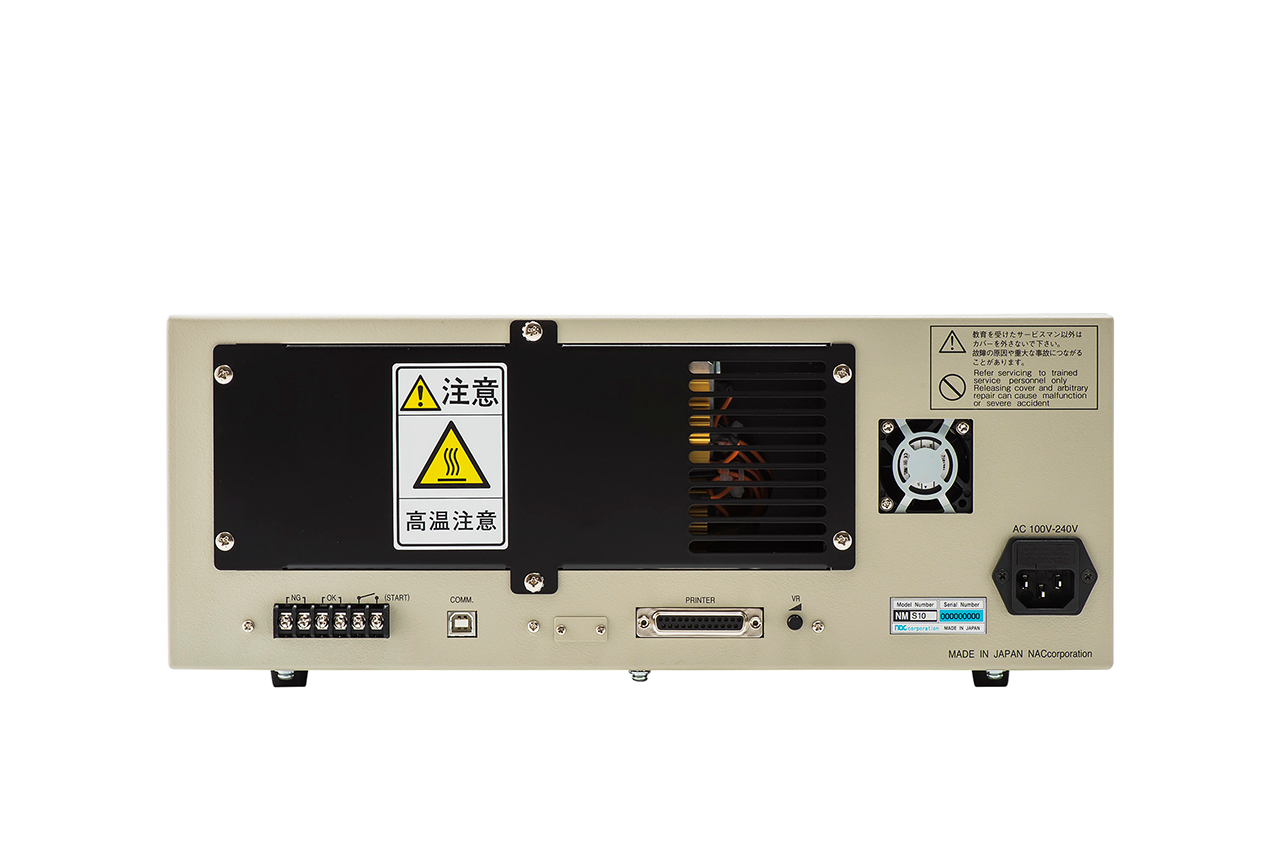

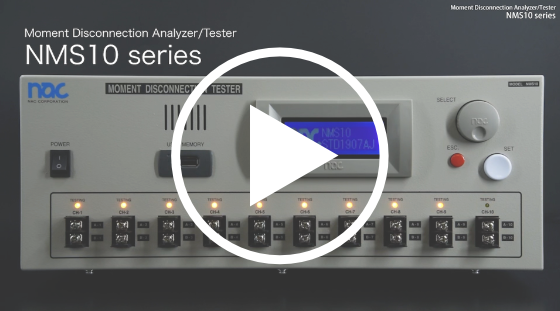

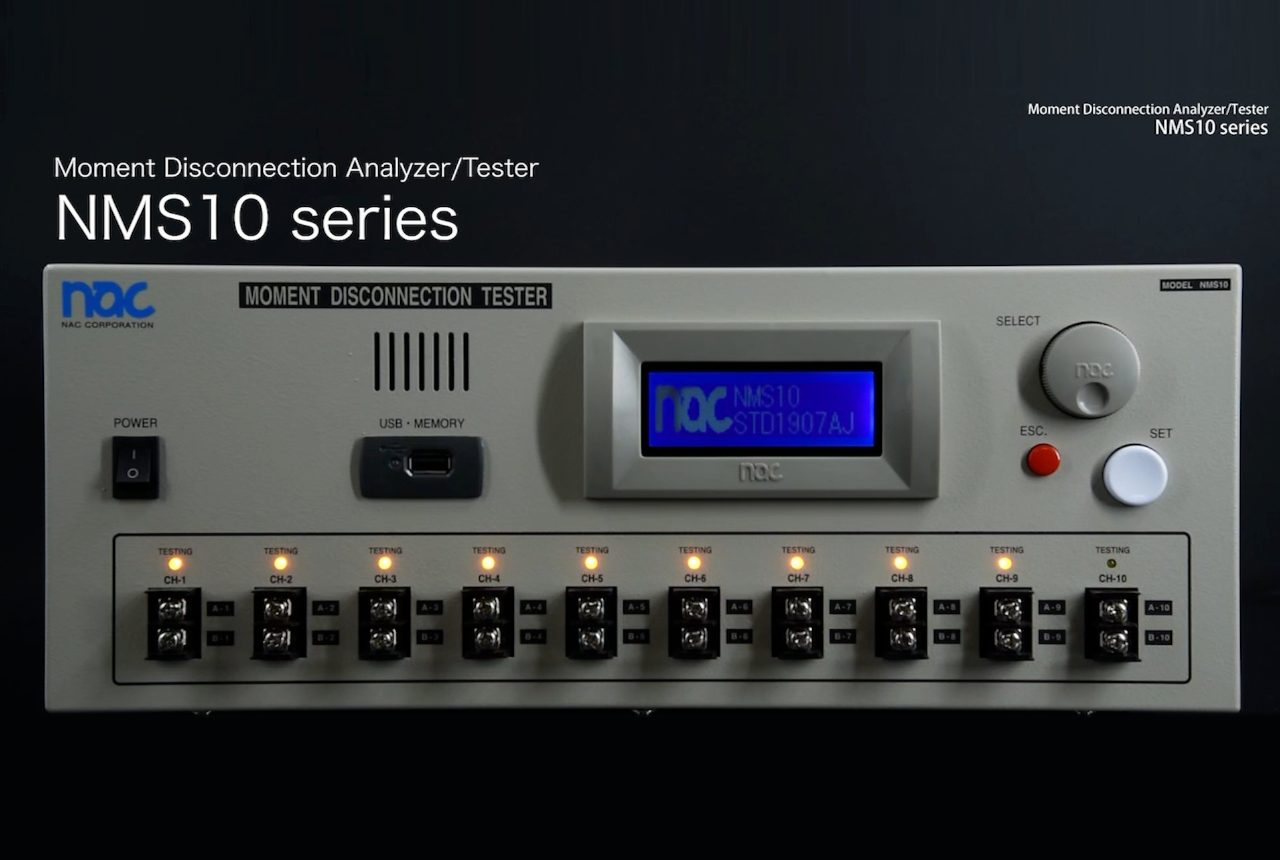

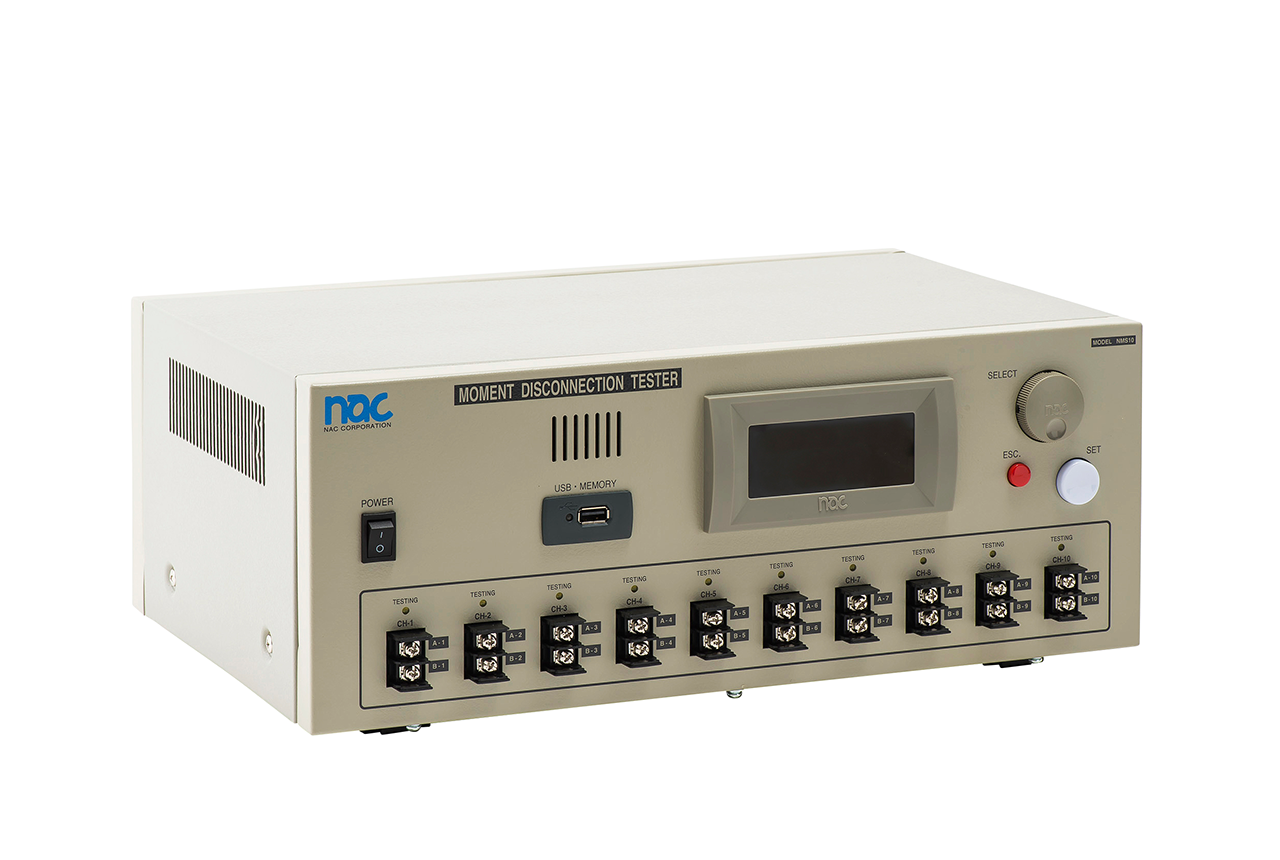

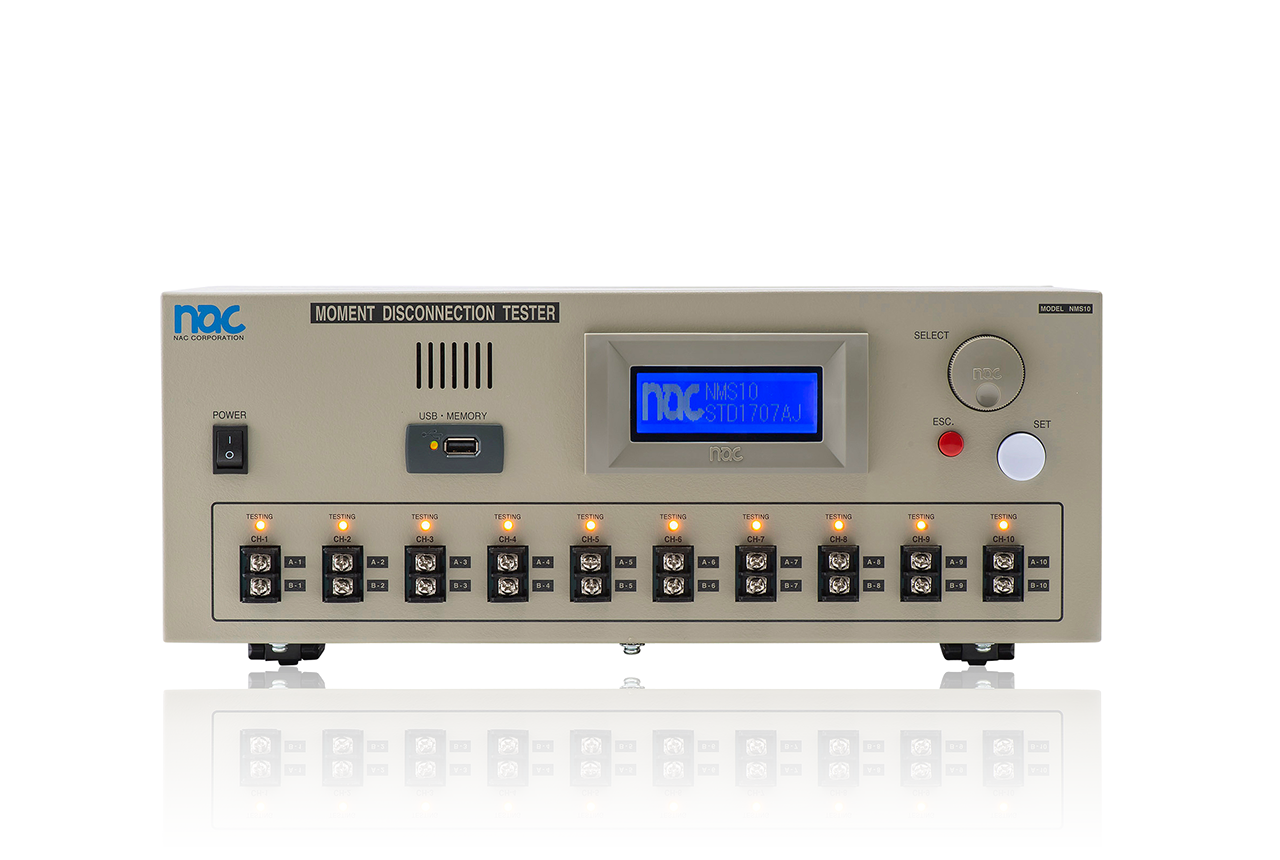

nacman NMS10 is Moment disconnection Analyzer.
It is a dedicated machine for Moment Disconnection Testing for wire harness and connectors.
NMS10 gets a high reputation in various fields to judge OK or NG and evaluate the products.
There is a great demand to inspect it in the environment exposed to vibration such as Automobile, Construction machinery, Train and Ship.
Visualizing Momentary Disconnection Phenomenon with PC software

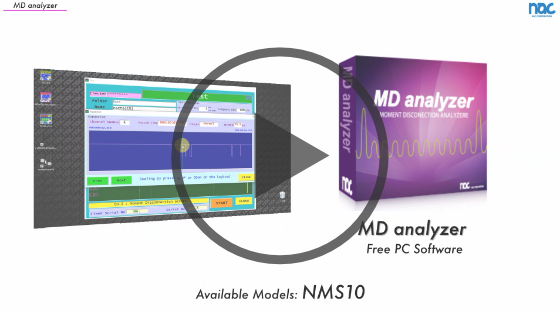

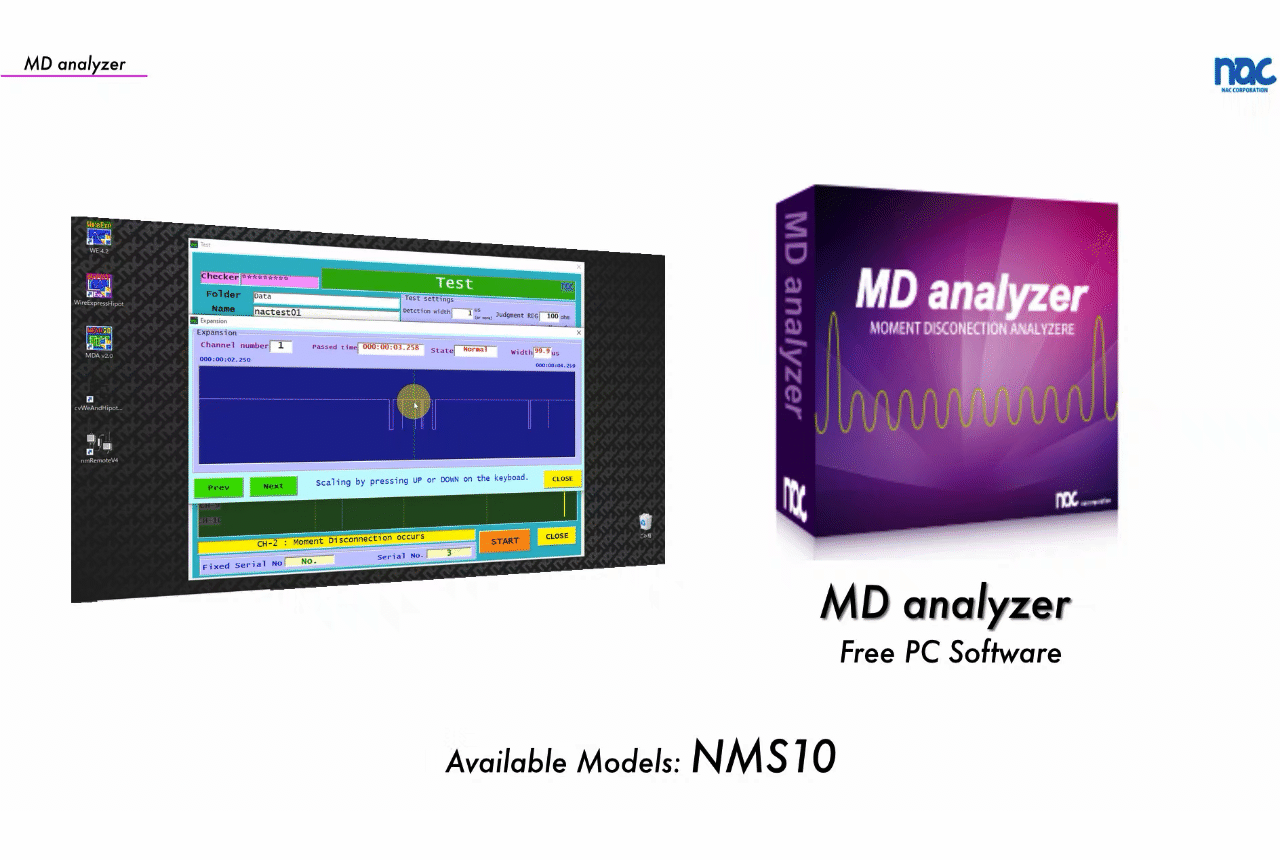

MD analyzer is the PC software to operate the Moment disconnection Analyzer/Tester “nacman NMS10”. With this software you can visualize the phenomenon of momentary disconnection. This is a free software and can be downloaded at our website. You can check the operation with this video.
All-in-one for testing moment disconnection
You can inspect moment disconnection with only NMS10.
From the view of cost, with NMS10 is more reasonable than with oscilloscopes.
Easy to use,Introducing soon.
The dial and simple menu are loved by users all over the world.
Monitoring a lot of events.
This tester can memory 12,000 events in real-time and tarnsfer them to USB or PC.
Worldwide Operation
It is compatible with AC90V~ 240V.
No problem to operate in an overseas factory.
You can choose language settings from English, Japanese and Chinese.
Better management by USB drive.
USB supports your inspections.Of course to control the testing data,you can record test results in it automatically.
Updating firmware is enable by USB too.
High quality inspections by Printing.
NMS10 has a printer port.Results can be output for evidences of testing.
Testing by PC communication
PC software MD Analyzer can be downloaded from our website.
It has a lot of functions for better inspection such as editing testing data, real-time displaying moment disconnection as the graph.
Compact body by FPGA
Trust and security
Monitoring the temperature of the inside for safety.
If the fan for cooling stops the circuit protection works automatically.
It is usable in testing for a long time.
Performance by technology
Monitoring all 10 channels at the same time.
Setting test current（1A／100mA／10mA）and threshold（1Ω～5KΩ）
Capturing moment disconnection in high-level （0.1μs～99.9μs）
Continuing the test for 999 hours 59 minutes 59 sec.
Free PC software can expand functions
Unlimited testing data storage.
Setting the test specs requested.
Real-time displaying moment disconnection as the graph.
Reviewing moment disconnection with test results.
Saving test results and the detail as CSV automatically.
Login functions for help to separate administrators and workers.
Self-Diagnosis is useful to judge the tester normal or not.
Specification
- Wiring Testing
- ---
- Conduction Resistance Testing
- ---
- Dielectric Withstand Testing
- ---
- Insulation Resistance Testing
- ---
- Moment Disconnection Testing
- 0.1μs.～99.9μs.
Detail
| Product Variant | -- |
|---|---|
| Wiring Testing | -- |
| Conduction Resistance Testing | -- |
| Conduction Resistance Testing (4wire) | -- |
| Dielectric Withstand Testing（AC） | -- |
| Dielectric Withstand Testing（DC） | -- |
| Insulation Resistance Testing | -- |
| Moment Disconnection Testing | -- |
| Search Testing | -- |
| Search Scanning | -- |
| Test Points | 10 |
| Test Circuits | 10 |
| Number of Memory | 256 |
| Number of Memory by USB | 65536 |
| Test Channels | ○ |
| Number of Event | 12000 |
| Number of Event by USB | 10000000 |
| Number of Event by PC | Unlimited |
| Number of Output Event by COM port | Unlimited |
| Number of Output Event for Printer | Unlimited |
| Result Output | USB／Printer/COM port |
| Connectors | ML-270-S1B3YF |
| Display Method | LCD |
| Operation Method | Dial／Switch |
| Language | English,Japanese,Chinese |
| External Printer | ○ |
| Connector for External Printer | ○ |
| Communication Port | USB |
| Connector for Communication | USB-B |
| Communication Method | USB |
| USB Flash Drive Communication | ○ |
| External Input | START |
| Output Terminal | OK/NG |
| Unit-to-unit Connector | -- |
| Data Retention Period | Over 50 years |
|---|---|
| Clock battery Life | Over 5 years |
| Power Supply | AC90V～AC240V |
| Size | W400mm×D260mm×H150mm |
| Weight | 8.5kg |
| Conditions for Use | Temperature：5℃～40℃／Humidity：5%～70% |
| Software | MD Analyzer |
| Test Points Addition | -- |
| Voltage for Wiring Testing | -- |
| Current for Wiring Testing | -- |
| Threshold for Wiring Testing | -- |
| Test time for Wiring Testing | -- |
| Voltage for Conduction Resistance Testing | -- |
| Current for Conduction Resistance Testing | -- |
| Threshold for Conduction Resistance Testing | -- |
| Test time for Conduction Resistance Testing | -- |
| Voltage for 4-wire low Conduction Resistance Testing | -- |
| Current for 4-wire low Conduction Resistance Testing | -- |
| Threshold for 4-wire low Conduction Resistance Testing | -- |
| Test time for 4-wire low Conduction Resistance Testing | -- |
| Voltage for Dielectric Withstand Testing（AC） | -- |
| Breaking Current for Dielectric Withstand Testing（AC） | -- |
| Test Time for Dielectric Withstand Testing（AC） | -- |
| Voltage Application for Dielectric Withstand Testing（AC） | -- |
| Voltage for Dielectric Withstand Testing（DC） | -- |
| Breaking Current for Dielectric Withstand Testing（DC） | -- |
| Test time for Dielectric Withstand Testing（DC） | -- |
| Voltage Application for Dielectric Withstand Testing（DC） | -- |
| Voltage for Insulation Resistance Testing | -- |
| Threshold for Insulation Resistance Testing | -- |
| Test Time for Insulation Resistance Testing | -- |
| Voltage Application for Insulation Resistance Testing | -- |
| Voltage for Moment Disconnection Testing | DC12V |
| Current for Moment Disconnection Testing | 10mA～1A |
| Threshold for Moment Disconnection Testing | 1Ω～5KΩ |
| Detection Time for Moment Disconnection Testing | 0.1～99.9μsec. |
| Test Time for Moment Disconnection Testing | 1sec～999hours（or NG Stop） |
| Moment Disconnection Testing Method | Concurrent Method |
Model
| Product | Test Points | Size | Price | Delivery date |
|---|---|---|---|---|
| NMS10 | 10 | W400mm×D260mm×H150mm | ¥918,000 | About 2 weeks |
Accessories
| Testing Cable | -- |
|---|---|
| Power Cable | NMCBL-PWR (2P/3P Plug Attached) |
| Search Probe | -- |
| PC Cable | NMCBL-COM-USB |
| Calibration Certificate | Calibration Certificate/Traceability System Diagram/Inspection Result Sheet |
| Warranty | 1 Copy |
Documents
| Specification Sheet EN | NMS10_spec_en_V1R1 |
|---|---|
| Operation Manual EN | NMS10_en_OP_V1R1 |
| USB Manual EN | NMS10_en_USB_V1R1 |
| Company Brochure | Company Brochure in Japanese |
| Company Brochure | Company Brochure in English |
Cable Harness Testing PC
- Contact us for Estimation
Shipping: 3-5weeks After Order
＊Not Including Transportation Cost and Fee - Detail
